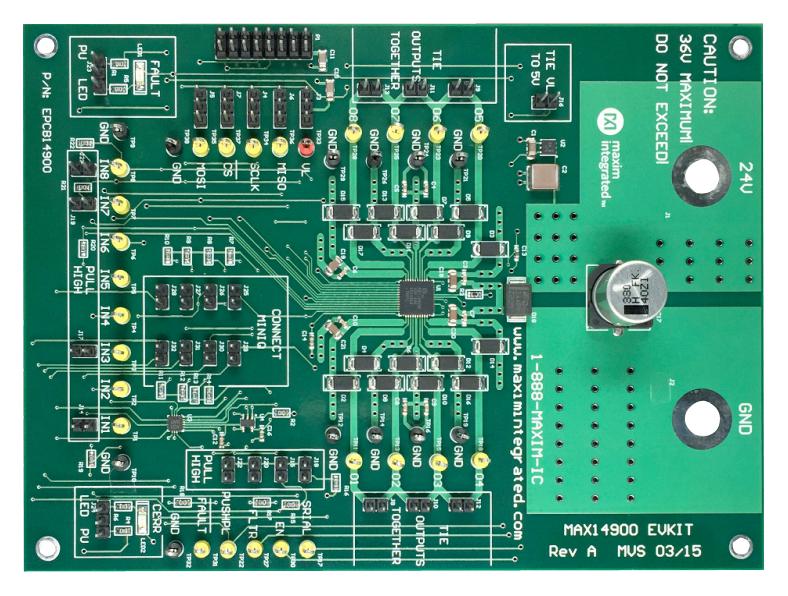

MAXIM INTEGRATED / ANALOG DEVICES MAX14900DEVBRD High-Speed Switch Module
The MAX14900E evaluation kit demonstrates the capabilities of the high-speed, industrial, high-side switch IC to drive multiple industrial-grade signals. It features a fully assembled surface-mount PCB operating from 11V to 36V with optional 5V supply, surge protection, and configurable parallel or serial modes for versatile control. With built-in TVS diodes, external surge protection, and optional fault indicators, this kit provides a reliable platform for testing and development of high-current industrial switching applications, offering simple setup and comprehensive functionality.
MAXIM INTEGRATED / ANALOG DEVICES MAX14900DEVBRD High-Speed Switch Module Specifications:
- Operating Voltage Range: 11V to 36V
- Main Power Supply: 24V (±11V)
- Built-in 5V Regulator
- Surge Protection: TVS diode 33VWM, Diodes for inductive kickback
- IC: High-speed, octal high-side switch
- Modes: Parallel, serial, monitored-parallel
- Configuration: Jumpers for configurable outputs and control modes
- Operating Temperature: Not specified, typical commercial/industrial range
- Connectors: Multiple test points, headers, push buttons
- Indicators: FAULT and CRC error LEDs
- Protection: Clamp diodes, TVS diode, surge protection
Buy the Maxim MAX14900E – Reliable High-Speed Switch for Industrial Applications
Get your Maxim MAX14900E evaluation kit now to efficiently test high-speed industrial high-side switching solutions. This fully assembled PCB offers versatile parallel and serial modes, surge protection, and integrated fault indicators, providing a comprehensive platform for development and testing of industrial-grade control circuits. Designed for ease of use, the kit includes multiple control points, configurable jumper settings, and safety features like TVS diodes, ensuring reliable performance under demanding conditions. Perfect for engineers seeking a dependable, ready-to-use high-current switch testing environment.
Order your Maxim MAX14900E evaluation kit today and give your industrial switching projects the dependable quality they deserve with versatile control options.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX14900DEVBRD?
You can click on the BUY or RFQ button to purchase MAX14900DEVBRD from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX14900DEVBRD?
You can download the MAX14900DEVBRD datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX14900DEVBRD?
MAXIM INTEGRATED / ANALOG DEVICES
