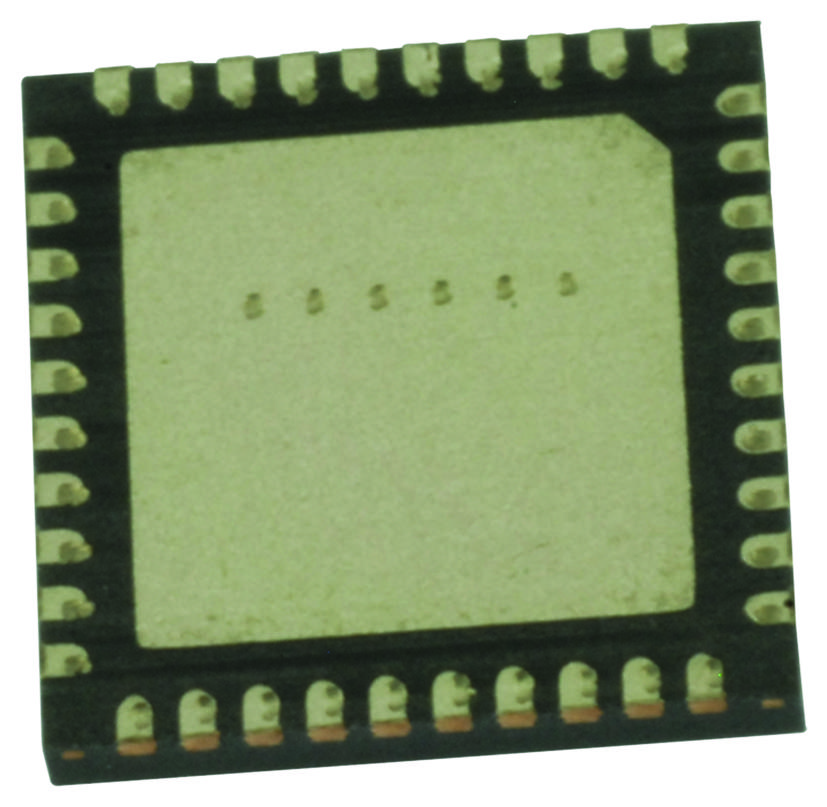

MAXIM INTEGRATED / ANALOG DEVICES MAX17082GTLT CPU Power Controller
The MAX17082GTL+T is a dual-phase, quick-PWM controller designed for IMVP-6.5 CPU core power supplies in a 40-pin TQFN package. It features a 2/1-phase interleaved output operation that reduces input ripple current and output voltage ripple, with true out-of-phase operation for improved efficiency. The controller provides rapid response to load changes through its quick-PWM control, and incorporates active voltage positioning to lower power dissipation and reduce the required output capacitance. It includes a slew-rate controller for smooth transitions between voltage IDs, as well as soft-start, shutdown, and suspend controls. A thermistor-based temperature sensor offers programmable thermal fault detection, while an analog current monitor (IMON) provides real-time CPU power consumption data. Additionally, it offers protections against undervoltage, overvoltage, and thermal events. The device supports a supply voltage range of 4.5V to 5.5V, operates from -40°C to 105°C, and features ±0.5% output voltage accuracy. It provides a 7-bit VID control (0-1.5V), programmable switching frequency from 200kHz to 800kHz, dynamic phase selection for efficiency, transient phase overlap to minimize output capacitance, integrated boost switches, and adjustable gain for active voltage positioning. The controller is suitable for power management in portable devices and is currently experiencing extended lead times due to market demand.
MAXIM INTEGRATED / ANALOG DEVICES MAX17082GTLT CPU Power Controller Specifications:
- Package: 40-pin TQFN
- Operational Temperature: -40°C to 105°C
- Supply Voltage Range: 4.5V to 5.5V
- Output Voltage Accuracy: ±0.5%
- VID Control: 7-bit, 0-1.5V
- Switching Frequency: 200kHz to 800kHz
- Phases: 2/1-phase interleaved operation
- Protection Features: undervoltage, overvoltage, thermal shutdown
- Active Voltage Positioning: adjustable gain
- Transient Phase Overlap: yes
- Thermistor-based thermal fault detection
- Analog CPU power monitoring (IMON)
- Application: IMVP-6.5 CPU core power supplies, portable devices
- Status: Extended lead times due to high demand
Buy the Maxim Dual-Phase Reliable CPU Power Controller for High-Performance Systems
Order the Maxim MAX17082GTL+T online today to ensure reliable CPU core power delivery with advanced features like active voltage positioning, thermal protection, and high efficiency. This dual-phase quick-PWM controller provides rapid load response, low ripple, and precise voltage regulation, ideal for portable device applications. With programmable switching frequencies from 200kHz to 800kHz, extended operation range, and integrated protections, it guarantees optimal system stability and power efficiency. Don’t miss out on this vital component—buy online now and enhance your power management design.
Get Maxim MAX17082GTL+T today—built for precision and long-lasting durability in CPU power management.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX17082GTLT?
You can click on the BUY or RFQ button to purchase MAX17082GTLT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX17082GTLT?
You can download the MAX17082GTLT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX17082GTLT?
MAXIM INTEGRATED / ANALOG DEVICES
