MAXIM INTEGRATED / ANALOG DEVICES MAX17201G Fuel Gauge IC
The MAX17201G is an ultra-low power stand-alone fuel gauge IC implementing the ModelGauge m5 algorithm, ideal for pack-side use in single-cell and multicell battery systems. It provides accurate state of charge (SOC) in mAh or percentage, automatically compensating for aging, temperature, discharge rate, and cell variations. It features SHA-256 authentication, a 64-bit unique ID, and supports I2C or 1-Wire interfaces. The IC monitors voltage, current, and temperature, with advanced error correction, lifetime forecasting, and data logging capabilities, suitable for portable electronics, medical devices, and smart battery applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX17201G Fuel Gauge IC Specifications:

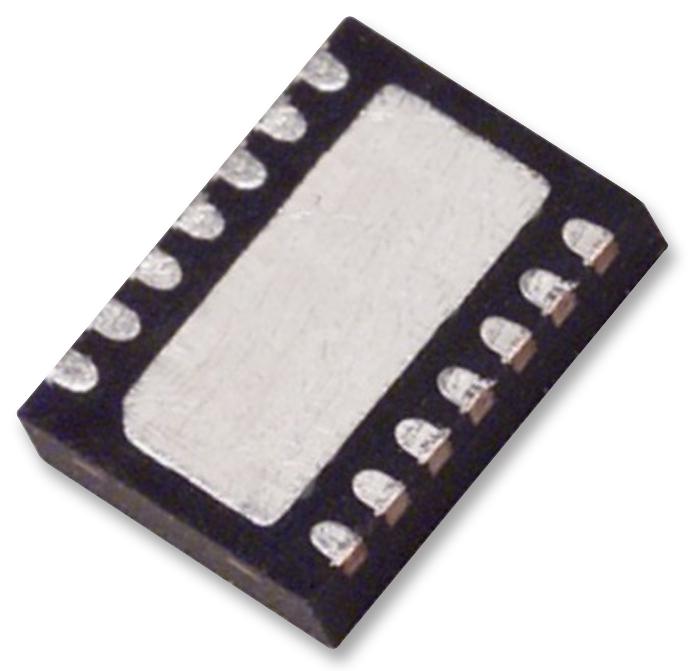

- Package: 14-TDFN-EP or 15 WLP
- Supply Voltage: 2.85V to 4.9V (single-cell), 4.2V to 20V (multicell)
- Quiescent Current: 18µA active, 9µA hibernate (MAX17201/MAX17211); 25µA active, 12µA hibernate (MAX17205/MAX17215)
- Voltage Measurement Range: 0 to 65.535V with 1.25mV resolution
- Current Measurement Range: up to ±51.2mV across sense resistor, resolution dependent on resistor value
- Temperature Monitoring: Internal die and external thermistors, accuracy ±3°C
- Interface: I2C or 1-Wire, standard and overdrive speeds supported
- Authentication: SHA-256 with 160-bit secret key, unique 64-bit ID
- Data Logging: Up to 203 history snapshots, nonvolatile storage, automatic or manual recall
- Alarm Indicators: voltage, SOC, temperature, current thresholds with programmable alerts
- Operational Modes: active, hibernate, shutdown with configurable timers
- Features include error correction, age and cycle forecasting, capacity estimation, and flexible memory lock/unlock
Buy the Maxim MAX17201 Reliable Fuel Gauge for Industrial Applications
Enhance your battery management system with the MAX17201G fuel gauge IC. Featuring industry-leading accuracy, SHA-256 authentication, lifetime aging and cycle forecasting, and multiple communication options, it ensures reliable performance for portable electronics, medical devices, and energy storage solutions. Its advanced algorithms and data logging capabilities make it perfect for domestic, industrial, or portable battery packs where precise SOC measurement and battery health monitoring are critical. Order online today to improve device longevity and safety.
Get Maxim MAX17201G today—built for precision and long-lasting durability in battery management systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX17201G?
You can click on the BUY or RFQ button to purchase MAX17201G from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX17201G?
You can download the MAX17201G datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX17201G?
MAXIM INTEGRATED / ANALOG DEVICES
