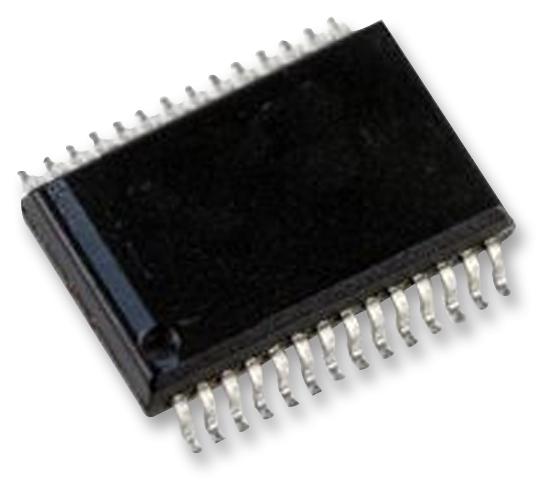

MAXIM INTEGRATED / ANALOG DEVICES MAX4588CAI Dual RF Video Multiplexer
The MAX4588CAI+ from Maxim Integrated Products is a low-voltage, high-isolation, dual 4-channel RF and video multiplexer packaged in a 28-pin SSOP. It is designed for RF and video signal processing at frequencies up to 180MHz in 50-ohm and 75-ohm systems. The device features a flexible digital interface that supports control via parallel or serial SPI™/MICROWIRE™ ports. Each channel uses a 'T' switch configuration, providing excellent high-frequency off-isolation. The MAX4588CAI+ has a maximum on-resistance of 60 ohms with an on-resistance match across channels of up to 4 ohms, flat across the signal range (up to 2 ohms). Its off-leakage current is less than 1nA at +25°C and under 10nA at +85°C. It is suitable for RF switching, automatic test equipment, video routing, networking, and high-speed data acquisition applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX4588CAI Dual RF Video Multiplexer Specifications:
- Package: 28-pin SSOP
- Signal frequency: Up to 180MHz
- On-Resistance: Max 60Ω
- On-Resistance Match: Max 4Ω across channels
- On-Resistance Flatness: Max 2Ω
- Off-Leakage Current: <1nA at +25°C, <10nA at +85°C
- Control Interface: Parallel or SPI/MICROWIRE serial
- Configuration: Dual 4-channel RF/video multiplexer
- Isolation: High high-frequency off-isolation, -74dB at 10MHz
- Application: RF switching, video signal routing, networking, high-speed data acquisition
- Maximum frequency: 180MHz
- Power Supply: +2.7V to +12V single or dual supply
- Package options: 28-pin SSOP, wide SO, narrow DIP
Buy the Buy Maxim MAX4588CAI+ Part Number MAX4588CAI+ Online
Purchase the Maxim MAX4588CAI+ online today to ensure your RF and video signal routing systems operate with high precision. This dual 4-channel multiplexer offers up to 180MHz frequency, low on-resistance, and excellent high-frequency isolation, making it ideal for RF switching, automatic test equipment, and networking applications. Its flexible interface supports parallel and serial control, simplifying integration into your designs. Trust Maxim’s quality for reliable performance, quick delivery, and competitive prices when buying online.
Buy Maxim MAX4588CAI+ now and experience unmatched reliability and performance in RF and video multiplexing applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX4588CAI?
You can click on the BUY or RFQ button to purchase MAX4588CAI from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX4588CAI?
You can download the MAX4588CAI datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX4588CAI?
MAXIM INTEGRATED / ANALOG DEVICES
