MAXIM INTEGRATED / ANALOG DEVICES MAX4660EUAT High-Current Analog Switch
The MAX4660 is a high-current, CMOS SPDT analog switch designed for applications requiring low ON-resistance and high peak and continuous current handling. It features rail-to-rail voltage switching, a low power consumption of only 3mW, and can operate from single or dual power supplies within +4.5V to +20V or +9V to +40V ranges. Suitable for relay replacement, audio routing, and communication systems, it handles load currents up to 200mA peak, with low leakage and fast switching times, making it ideal for high-performance analog switching in complex electronic systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX4660EUAT High-Current Analog Switch Specifications:
- On-Resistance: 25Q max at +15V supplies
- Peak Current Handling: 200mA (MAX4660)
- Continuous Current: 150mA (MAX4660)
- Supply Voltage Range: +4.5V to +20V dual, +9V to +40V single
- On-Resistance Flatness: 1.5Q max at +15V
- Leakage Current: 1nA max at +25°C
- Switching Time: 10 to 200ns depending on configuration
- Power Dissipation: 825mW in UMAX-EP package at +70°C
- Operating Temperature Range: -40°C to +85°C
- Charge Injection: 1.5pC
- Bandwidth: Up to 225MHz typical
- Package: 8-pin uMAX, SO, with exposed paddle options
- Designed for high-speed, high-current load switching with low distortion and crosstalk

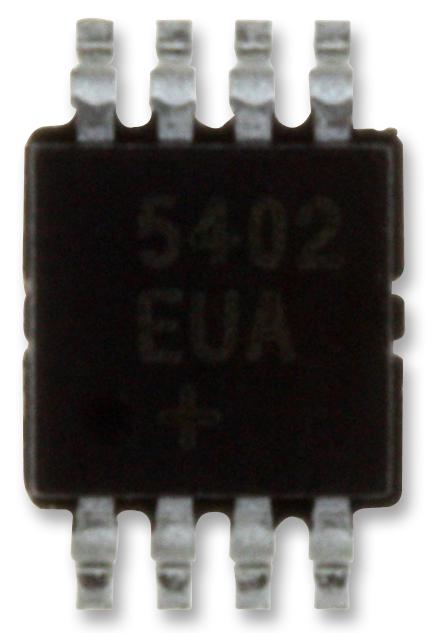

Buy the Buy Maxim MAX4660EUAT High-Current CMOS SPDT Analog Switch Part Number MAX4660EUAT Online
Purchase the MAX4660 analog switch online today to ensure high-speed, low-resistance switching with peak current handling up to 200mA. Ideal for relay replacement, audio routing, and communication systems, this CMOS SPDT switch offers low power consumption of just 3mW and operation across a wide voltage range. Its robust design ensures minimal leakage current, fast transition times, and high bandwidth, making it perfect for high-performance electronic applications. Order now to enhance your system’s switching capabilities with reliable, compact, and versatile analog switching solutions.
Buy Maxim MAX4660EUAT now and experience unmatched reliability and high-speed switching performance for your critical electronics applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX4660EUAT?
You can click on the BUY or RFQ button to purchase MAX4660EUAT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX4660EUAT?
You can download the MAX4660EUAT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX4660EUAT?
MAXIM INTEGRATED / ANALOG DEVICES
