MAXIM INTEGRATED / ANALOG DEVICES MAX6072AAUB25 Dual Voltage Reference
The MAX6072 is a high-precision dual-output voltage reference designed for industrial, medical, and measurement applications. It provides two independent outputs, Vref and Vper/2, with ultra-low noise, high accuracy, and excellent temperature stability over -40°C to +125°C. The device features Kelvin connections for load regulation, separate enable pins for each output, and operates on input voltages from 2.8V to 5.5V. Its low power consumption and high stability make it ideal for ADC, DAC references, and portable systems in demanding environments.
MAXIM INTEGRATED / ANALOG DEVICES MAX6072AAUB25 Dual Voltage Reference Specifications:
- Output Voltage Accuracy: ±0.05% (max) at 25°C for 5V/2.5V output
- Temperature Coefficient: 6ppm/°C (max) for grade A
- Output Voltage Drift: Typically 15ppm over 1000 hours
- Input Voltage Range: 2.8V to 5.5V
- Output Voltage: 5V/2.5V, 4.096V/2.048V, or 2.5V/1.25V depending on part
- Output Current: Source/Sink 10mA
- Dropout Voltage: 110mV to 230mV depending on grade and temperature
- Thermal Hysteresis: 85ppm
- Noise Density: 60nV/√Hz to 75nV/√Hz (0.1Hz to 10Hz)
- Ripple Rejection: 60dB at 60Hz
- Capacitive Load Stability: 0.1μF to 10μF
- Quiescent Supply Current: approximately 150μA per reference

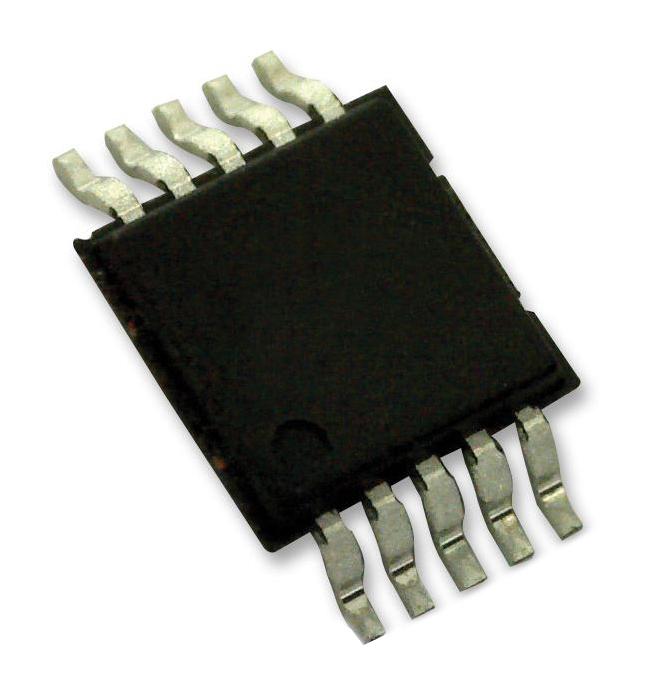

- Package: 10-pin uMAX® package
- Operating Temperature: -40°C to +125°C
Buy the Buy MAXIM Integrated MAX6072AAUB25 High-Precision Voltage Reference Part Number MAX6072AAUB25 Online
Discover the versatility and precision of the MAX6072AAUB25 dual voltage reference designed for demanding industrial, medical, and measurement systems. This device provides two independent, low-noise, high-stability outputs, ideal for ADC and DAC applications, with separate enable controls for flexible operation. Operating on 2.8V to 5.5V, it delivers ultra-low thermal hysteresis and drift, ensuring consistent performance over wide temperature ranges. Its compact 10-pin uMAX package makes it suitable for space-constrained designs requiring high accuracy and reliability.
Buy MAXIM Integrated MAX6072AAUB25 now and experience unmatched reliability and performance in high-accuracy voltage references for measurement and industrial applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX6072AAUB25?
You can click on the BUY or RFQ button to purchase MAX6072AAUB25 from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX6072AAUB25?
You can download the MAX6072AAUB25 datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX6072AAUB25?
MAXIM INTEGRATED / ANALOG DEVICES
