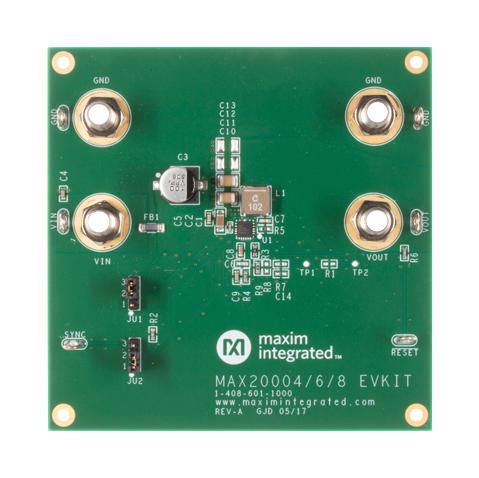

MAXIM INTEGRATED / ANALOG DEVICES MAX20008EVKIT High-Voltage Power Management Module
Evaluation kit for the MAX20008 features a high-efficiency synchronous DC-DC converter with integrated FETs, supporting an operating input voltage range of 3.5V to 36V. It offers a no-load quiescent current of 25µA in skip mode, with adjustable switching frequency from 220kHz to 2.2MHz. The kit includes an external synchronization input, internal soft-start, and provides fixed 3.3V or 5.0V outputs, or a resistor-programmable output from 1V to 10V. It also supports low dropout operation with an effective duty cycle of 98%, and has an active-low RESET output.
MAXIM INTEGRATED / ANALOG DEVICES MAX20008EVKIT High-Voltage Power Management Module Specifications:
- Input Voltage Range: 3.5V to 36V
- Switching Frequency: 220kHz to 2.2MHz (programmable)
- Quiescent Current: 25µA (no load, skip mode)
- Output Voltage: Fixed 3.3V or 5.0V, or resistor-programmable 1V to 10V
- Dropout Operation: 98% duty cycle
- Control Mode: Forced-PWM or SKIP mode
- Synchronization: External sync input available
- Internal Soft-Start: Yes
- RESET Output: Active-low, open-drain with pull-up
Buy the Buy Maxim High-Voltage Switch-Mode Converter Part Number MAX20008EVKIT Online
Enhance your power systems with the Maxim MAX20008EVKIT, a fully assembled high-efficiency synchronous DC-DC converter evaluation kit supporting 3.5V to 36V input voltages. Easily set adjustable switching frequencies from 220kHz to 2.2MHz and choose fixed or resistor-programmed outputs from 1V to 10V. Equipped with internal soft-start, external sync, and a low-noise RESET indicator, this kit provides a reliable solution for high-performance power regulation in various industrial and electronics projects. Purchase online today for quick delivery.
Buy Maxim MAX20008EVKIT now and experience unmatched efficiency and reliable power management for your high-voltage applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX20008EVKIT?
You can click on the BUY or RFQ button to purchase MAX20008EVKIT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX20008EVKIT?
You can download the MAX20008EVKIT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX20008EVKIT?
MAXIM INTEGRATED / ANALOG DEVICES
