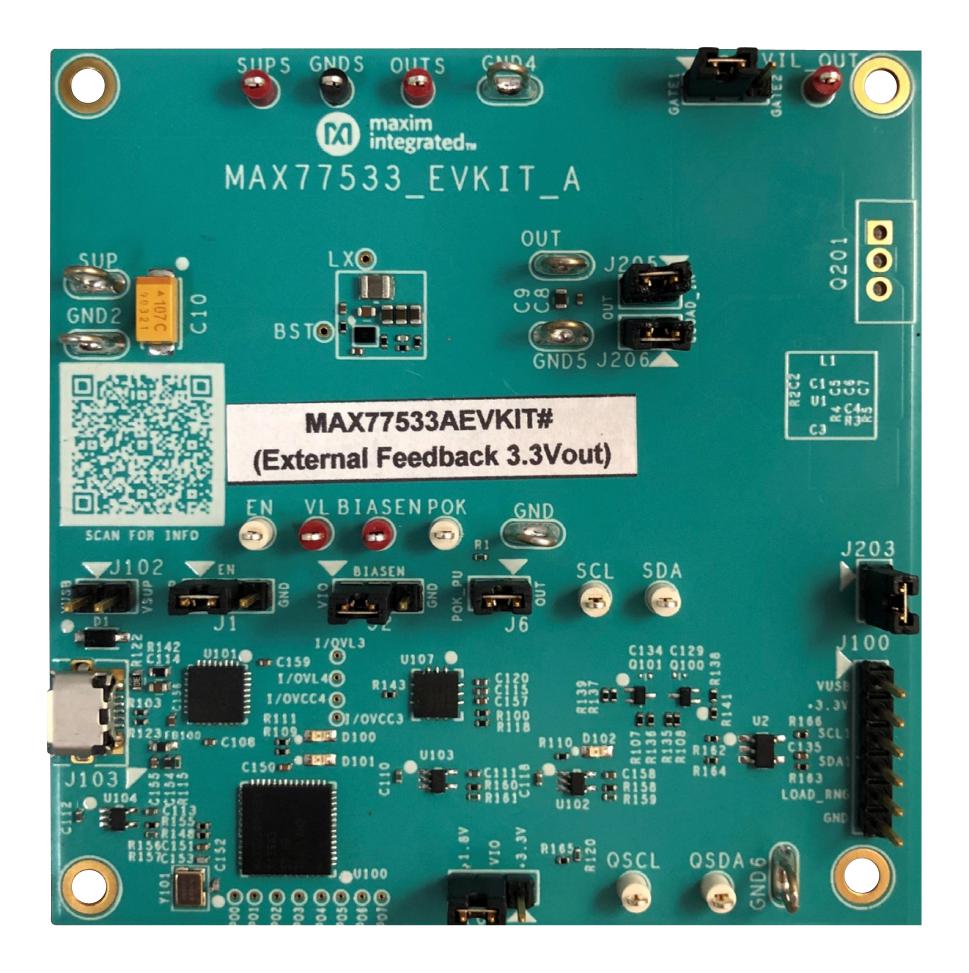

MAXIM INTEGRATED / ANALOG DEVICES MAX77533AEVKIT Buck Converter Evaluation Kit
The MAX77533 evaluation kit is a comprehensive demonstration platform for a high-efficiency synchronous buck converter. It features an adjustable output voltage from 0.8V to 5V via internal or external feedback, supports input voltages from 3V to 14V, and delivers up to 1.5A continuous current. Equipped with a dual-range electronic load, GUI software for seamless control, and USB-to-I2C communication, this fully assembled test PCB allows thorough performance evaluation, load testing, and flexible configuration ideal for power management applications in industrial and consumer electronics.
MAXIM INTEGRATED / ANALOG DEVICES MAX77533AEVKIT Buck Converter Evaluation Kit Specifications:
- Input Voltage Range: 3V to 14V
- Output Voltage Range: 0.8V to 5V (internal feedback) or 1.55V to 99% of input (external feedback)
- Maximum Continuous Current: 1.5A
- Supported Load Currents: 10mA to 2.56A with dual-range electronic load
- Power Supply Requirements: 15V, 2A recommended
- Operating Temperature: -55°C to +125°C
- Component Types: Ceramic and tantalum capacitors, resistors in 0402 and 0603 packages, Schottky diodes
- Communication Interface: USB-to-I2C via Micro-B USB
- Programmable Features: Output voltage, load profile, soft-start, pass enable, peak current limit
- Controller: MAX77533 buck converter IC
- Additional Features: On-board electronic load, GUI software, configurable feedback resistors, and optional external feedback
- Enables detailed evaluation of thermal performance, transient response, and efficiency in power systems
Buy the Maxim Series MAX77533 Buck Converter: MAX77533EVKIT#
Purchase the Maxim Series MAX77533 Buck Converter Evaluation Kit online to access a complete testing platform. This fully assembled PCB supports adjustable output voltages from 0.8V to 5V, input range from 3V to 14V, and load currents up to 1.5A. Ideal for evaluating high-efficiency power conversion, load transient response, thermal performance, and hardware/software interaction, it includes GUI control, electronic loads, USB communication, and configurable feedback options—perfect for developers and engineers seeking reliable power solutions.
Order your Maxim Series MAX77533 Evaluation Kit today and give your power management projects the dependable quality they deserve, with flexible configuration and thorough testing capabilities.
