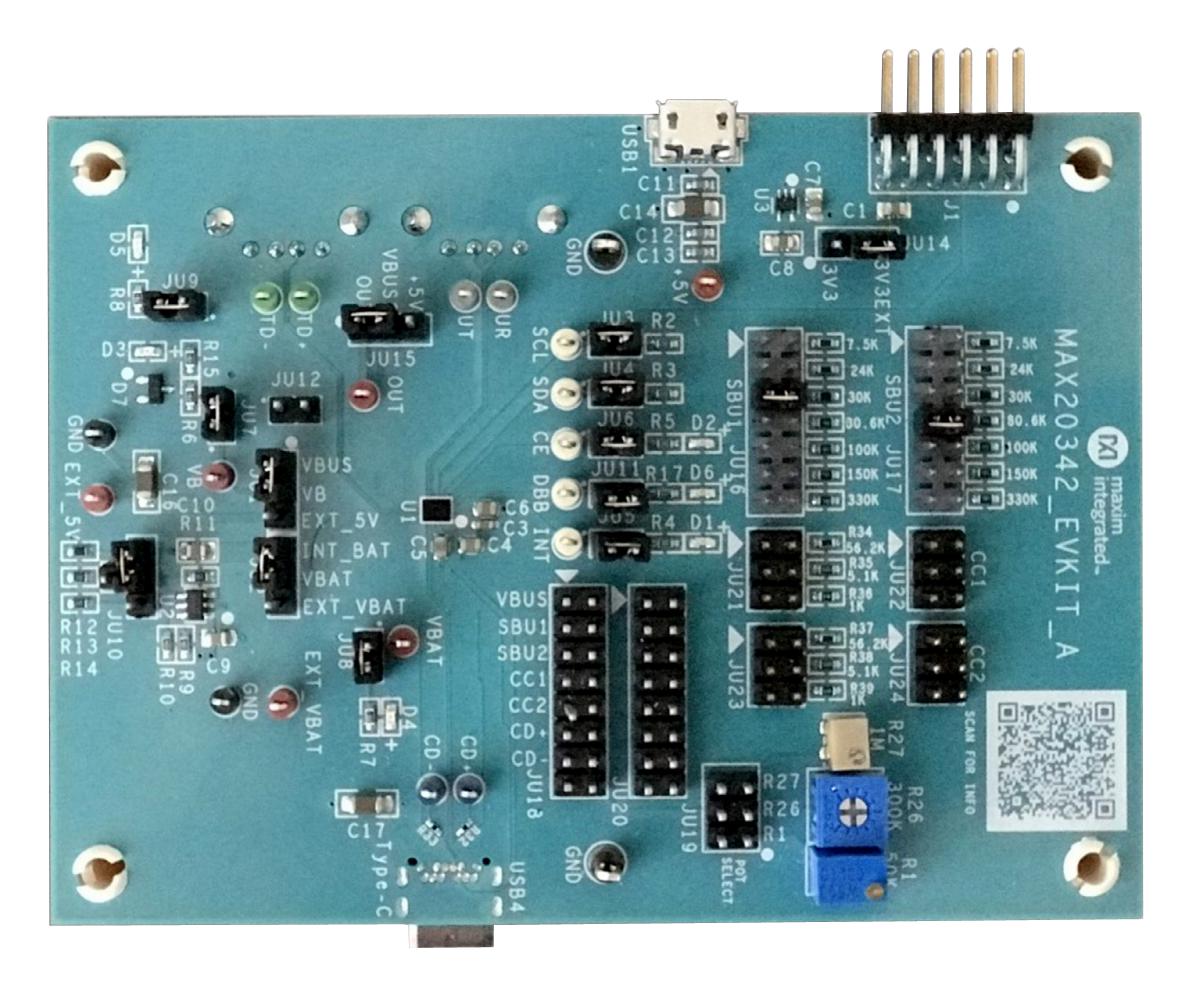

MAXIM INTEGRATED / ANALOG DEVICES MAX20342EVKIT USB Type-C Charger Detector
The MAX20342 evaluation kit is a comprehensive, fully assembled PCB designed to evaluate the MAX20342 USB Type-C charger detector with integrated overvoltage protection. It features a USB-C port, an onboard adjustable regulator for powering the IC, and interfaces for moisture detection, SBU resistance measurement, and charger detection. The kit includes a Pmod connector for I2C communication, supporting BC1.2 charger detection, USB switching, and protection features. It operates from a standard 5V USB power source, with software for configuration and diagnostics, ideal for testing USB PD applications and system integrations.
MAXIM INTEGRATED / ANALOG DEVICES MAX20342EVKIT USB Type-C Charger Detector Specifications:
- Operating Voltage: USB +5V DC
- IC Package: 24-bump wafer-level package (WLP)
- Detection Interface: I2C
- Supports BC1.2 charger detection
- Overvoltage protection incorporated
- Onboard configurable regulator: 2.3V, 3.3V, 4.2V
- USB-C port with Type-C detection and VCONN control
- Moisture detection capability with resistance measurement
- SBU resistance detection with multiple accessory modes
- On-board jumpers for customization
- Includes USB-A to Micro-B cables and USB Type-C cable
- Compatible with Windows 8/10 GUI software for control
- Power efficiently from USB +5V, optional external supply available
- Designed for testing USB Power Delivery and Type-C solutions
- PCB Dimensions: Approximately 70mm x 70mm
- High-speed USB layout optimized for accurate testing
- RoHS compliant, fully assembled and tested
Buy the Maxim MAX20342 U+2013 Reliable USB Type-C Charger Detector for Industrial Applications
Purchase the Maxim MAX20342 evaluation kit online today to explore advanced USB Type-C charger detection, moisture sensing, and protection features. The kit comes fully assembled, tested, and includes all necessary cables and interface options for immediate use. Its software control offers easy configuration for BC1.2 detection, SBU resistance measurement, and overvoltage protection, making it ideal for development, testing, and integration into industrial and consumer electronics. Experience reliable performance and accurate testing with this comprehensive evaluation solution for USB Type-C applications.
Get Maxim MAX20342 today—built for precision and long-lasting durability in USB Type-C detection.
