MAXIM INTEGRATED / ANALOG DEVICES MAX20014ATGAV High-Efficiency DC-DC Converter
The MAX20014 is a high-efficiency three-output low-voltage DC-DC converter designed for compact applications requiring multiple power rails. It features a synchronous boost converter that boosts input voltages from 3.0V to 5.5V up to 8.5V at 750mA, along with two synchronous buck converters providing outputs from 0.8V to 3.8V at 3A each. Operating at 2.2MHz, it ensures improved efficiency, includes multiple protective features, and is suitable for automotive environments with a compact 24-pin TQFN package.
MAXIM INTEGRATED / ANALOG DEVICES MAX20014ATGAV High-Efficiency DC-DC Converter Specifications:
- Input Voltage Range: 3.0V to 5.5V
- Output Voltages: Boost 3.8V to 8.5V in 100mV steps; Buck 0.8V to 3.8V in 25mV steps
- Maximum Output Current: 750mA (boost), 3A (buck channels)
- Switching Frequency: 2.2MHz fixed
- Efficiency: Boost +2%, Buck +1.5% over load/line/temperature
- Package: 24-pin TQFN, 4mm x 4mm
- Operating Temperature: -40°C to +125°C
- Protection: Overcurrent, overtemperature, PWM and skip modes
- Input Capacitors: 4.7uF ceramic recommended
- Inductor Selection: based on ripple current and slope compensation
- Control Inputs: EN1—EN3 for enable, SYNC for forced PWM / skip mode
- Reset Outputs: Active low, status indication for each channel

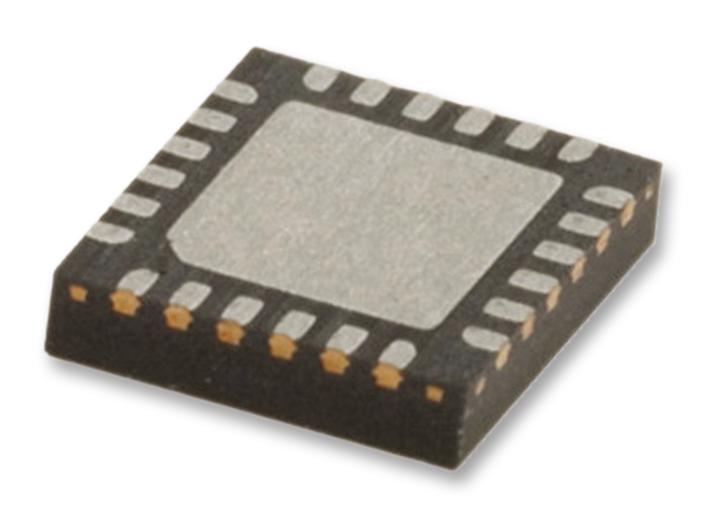

Buy the Buy MAXIM Integrated MAX20014 High-Efficiency DC-DC Converter Part Number MAX20014ATGAV Online
Enhance your electronic projects with the MAX20014, a versatile high-efficiency three-output low-voltage DC-DC converter. It includes a boost stage and dual buck converters, operating at 2.2MHz for low noise and minimal external components. Compact and robust, it features protections for automotive applications, adjustable output voltages, and excellent load and line regulation. Ideal for industrial automation, portable devices, and embedded systems, this converter guarantees reliable power delivery with high efficiency and thermal stability, simplifying layout with a 24-pin TQFN package ready for quick, easy online ordering.
Order your MAXIM Series MAX20014 high-efficiency low-voltage DC-DC converter today and ensure reliable power solutions with integrated protections and excellent load regulation.
