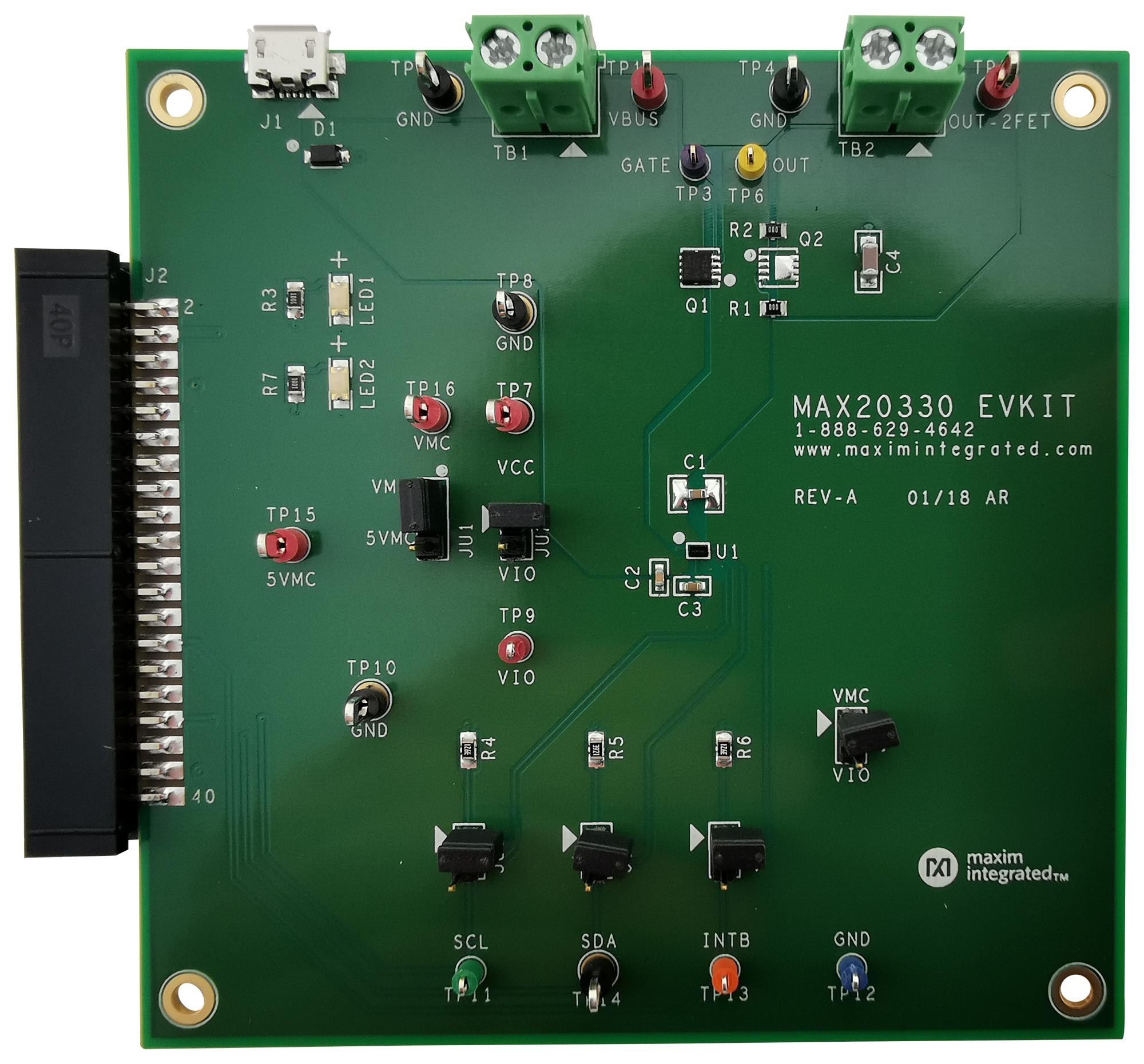

MAXIM INTEGRATED / ANALOG DEVICES MAX20330EVKIT Power Management Module
The MAX20330 Evaluation Kit is a fully assembled and tested circuit board designed for evaluating the MAX20330 programmable OVLO with VBUS short detection. It features proven PCB layout, easy connectivity through jumpers and headers, and allows for straightforward testing of the device’s overvoltage protection and short detection capabilities. The kit includes a MAX20330EWA+ IC, supports I2C communication with configurable pull-ups, and is ideal for engineers developing advanced power management solutions requiring reliable overvoltage and short circuit detection in portable and fixed applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX20330EVKIT Power Management Module Specifications:
- Package: 8-bump wafer-level package (WLP)
- Vcc Power Supply: Connectable from multiple external sources or TP7
- I2C Pins: Pulled up via jumpers JU2-JU6, slave address 0010 111
- Input Voltage Range: Up to approximately 6.8V before VOUT starts to decrease
- Operating Modes: Overvoltage and short detection enabled via programmable IC
- Temperature Range: -55°C to +125°C
- Capacitors: Ceramic, 0603 and 1206, 1000pF to 50V ratings
- Diodes: SOD-123W, 20V rated
- Connectors: USB micro-B, headers, terminal blocks for power and signal connections
- PCB Layout: Proven design, internal and bottom views available
- Communication: Configurable via I2C with pull-up jumpers, address 0x2E
- Configuration: Jumper positions for VCC, VIO, SCL, SDA, INTB, and other signals
- Max Power Dissipation: Supports safe operation within specified thermal limits
Buy the Buy MAXIM MAX20330 Evaluation Kit Part Number MAX20330EVKIT Online
Discover the MAX20330 Evaluation Kit, a fully assembled and tested circuit board for evaluating advanced overvoltage and short circuit detection. This versatile power management module features proven PCB layout, I2C communication, configurable jumpers, and a compact wafer-level package. Perfect for engineers developing portable devices and industrial electronics, it ensures reliable protection and easy integration into your design. Order today online for rapid development and high-precision power protection in demanding applications.
Get MAXIM MAX20330 Evaluation Kit today—designed for precise overvoltage protection and robust short detection in power management solutions.
