MAXIM INTEGRATED / ANALOG DEVICES MAX1117EKA+T Datasheet & Stock

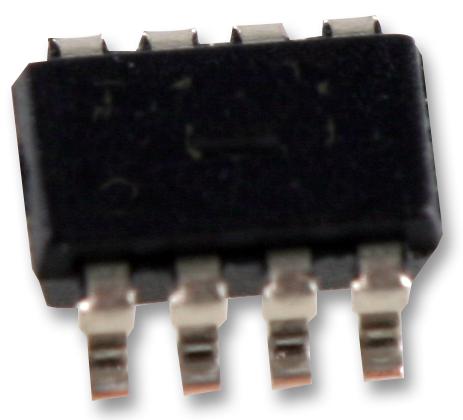

The MAX1117EKA+T is a single supply, low power, dual channel, serial 8bit analogue to digital converter (ADC) in 8 pin SOT-23 package. It has an internal track/hold (T/H) voltage reference, clock and serial interface. The MAX1117 is operates from 2.7V to 3.6V voltage range and consumes only 175μA supply current at 100Ksps. The full scale analogue input range is determined by internal reference of 2.048V. The device has an automatic shutdown mode that reduces supply current to less than 1μA when the device is not in use. The 3-wire serial interface directly connects to SPI, QSPI and MICROWIRE devices without external logic. Conversions up to 100Ksps are performed using an internal clock. The MAX1117 is used in system diagnostics, battery powered test equipment, solar powered remote systems, receive signal strength indicators and 4mA to 20mA powered remote data acquisition systems.




Analogue input range from 0 to VREF

Operating temperature range from -40°C to 85°C

Relative accuracy of ±1LSB

Differential nonlinearity (DNL) of ±1LSB

Offset error of ±0.5LSB and gain error of ±5%FSR

Gain temperature coefficient of ±90ppm/°C

Small signal bandwidth of 4MHz and spurious free dynamic range (SFDR) of 66dB

Supply rejection ratio of ±0.5LSB/V (full scale or 0 input)





Applications


Signal Processing,

Portable Devices
