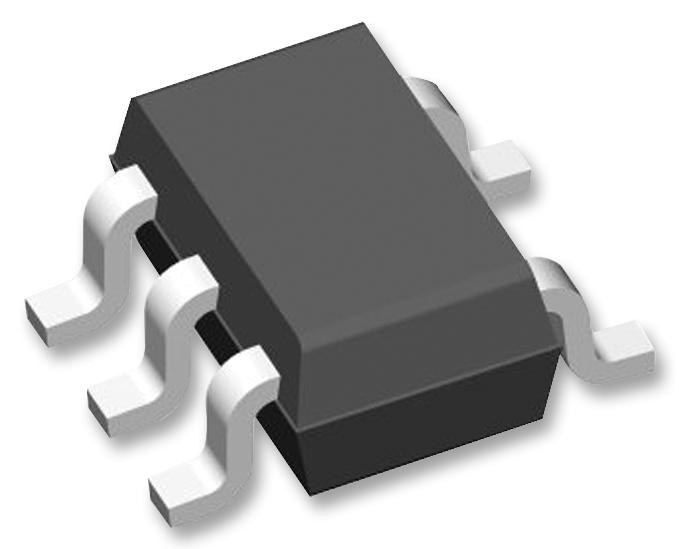

MAXIM INTEGRATED / ANALOG DEVICES MAX8511EXK18T Low-Noise Linear Regulator
The MAX8511EXK18T from Maxim Integrated Products is an ultra-low noise, high PSRR low dropout linear regulator with a fixed 1.8V output in a 5-pin SC-70 package. It is designed to deliver a continuous output current of up to 120mA. Utilizes a P-channel MOSFET series pass transistor, resulting in very low ground current of 40μA. This regulator is optimized for use with low-value, low-cost ceramic capacitors and does not require a bypass capacitor, enabling a compact PCB design. It features excellent load and line transient response, overcurrent and thermal protection, and a dropout voltage of 120mV at 120mA. Suitable applications include portable wireless devices, digital cameras, personal stereos, battery-powered equipment, and communication devices.
MAXIM INTEGRATED / ANALOG DEVICES MAX8511EXK18T Low-Noise Linear Regulator Specifications:
- Output Voltage: 1.8V
- Maximum Output Current: 120mA
- Dropout Voltage: 120mV at 120mA
- Ground Current: 40μA
- Package: 5-pin SC-70
- Input Voltage Range: 2V to 6V
- Output Voltage Accuracy: ±2%
- Line Regulation: 0.001V
- Load Regulation: 0.003V
- Thermal Shutdown: Yes
- Overcurrent Protection: Yes
- Input and Output Capacitors: 1μF recommended
- Noise: 11μVRMS bandgap reference, low output noise
- PSRR: 78dB at 1kHz, 54dB at 100kHz
- Thermal Resistance (@Junction/Ambient): 324°C/W (SC70)
- Operating Temperature Range: -40°C to +85°C
Buy the Maxim MAX8511EXK18T – Reliable Low-Noise Linear Regulator for Industrial Applications
Experience dependable power regulation with the Maxim MAX8511EXK18T, a low-noise, high PSRR, low dropout linear regulator ideal for portable electronics. Its 1.8V fixed output, 120mA capacity, and minimal ground current make it perfect for compact battery-powered devices. Designed for space efficiency, it requires only basic input and output capacitors, and it provides excellent transient response, thermal protection, and overcurrent safety. It's suitable for digital cameras, wireless gadgets, personal stereos, and communication equipment, ensuring reliable performance and extended battery life.
Get Maxim MAX8511EXK18T today—built for precision and long-lasting durability in portable and battery-powered systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX8511EXK18T?
You can click on the BUY or RFQ button to purchase MAX8511EXK18T from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX8511EXK18T?
You can download the MAX8511EXK18T datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX8511EXK18T?
MAXIM INTEGRATED / ANALOG DEVICES
