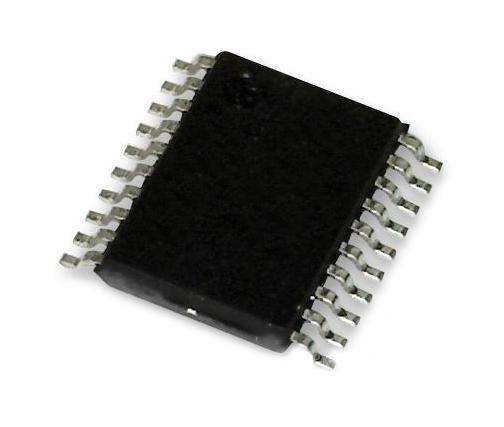

MAXIM INTEGRATED / ANALOG DEVICES MAX25612AUPV Automotive LED Driver
The MAX25612 is a high-brightness LED driver designed for automotive frontlighting applications, supporting input voltages from 5V to 48V and capable of driving LED strings up to 65V. It features synchronous rectification for efficiencies exceeding 90%, high-side current sensing for protection, PWM and analog dimming, spread-spectrum EMI reduction, and thermal and overvoltage protection. The device operates throughout the -40°C to +125°C automotive temperature range, includes integrated MOSFET drivers, and is available in compact 20-pin TQFN and TSSOP packages, making it ideal for automotive, industrial, and architectural lighting.
MAXIM INTEGRATED / ANALOG DEVICES MAX25612AUPV Automotive LED Driver Specifications:
- Input Voltage: 5V to 48V
- Maximum Output Voltage: 65V
- Efficiency: >90%
- Operating Temperature Range: -40°C to +125°C
- Switching Frequency: Programmable from 200kHz to 2.2MHz
- Protection: Overvoltage, thermal shutdown, short circuit
- Dimming: PWM ratios up to 5000:1, analog control via ICTRL
- Package Options: 20-pin TQFN and TSSOP with exposed pad
- Current Sense: High-side sensing for LED protection
- Spread-spectrum modulation for EMI reduction
- Built-in MOSFET drivers for high efficiency synchronous switching
Buy the Maxim Series Automotive LED Driver: MAX25612
Get your hands on the Maxim MAX25612AUPV now through our online store. This highly efficient LED driver offers robust protections, advanced dimming options, and the quality assurance needed for automotive lighting. Whether you need for high-beam, low-beam, DRL, or fog lights, this compact, automotive-qualified device ensures reliable operation across extreme temperatures. Purchase online today and enhance your automotive lighting project with the leading high-brightness LED driver designed for performance and longevity.
Buy Maxim MAX25612AUPV now and experience unmatched efficiency and robust protection for automotive LED lighting systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX25612AUPV?
You can click on the BUY or RFQ button to purchase MAX25612AUPV from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX25612AUPV?
You can download the MAX25612AUPV datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX25612AUPV?
MAXIM INTEGRATED / ANALOG DEVICES
