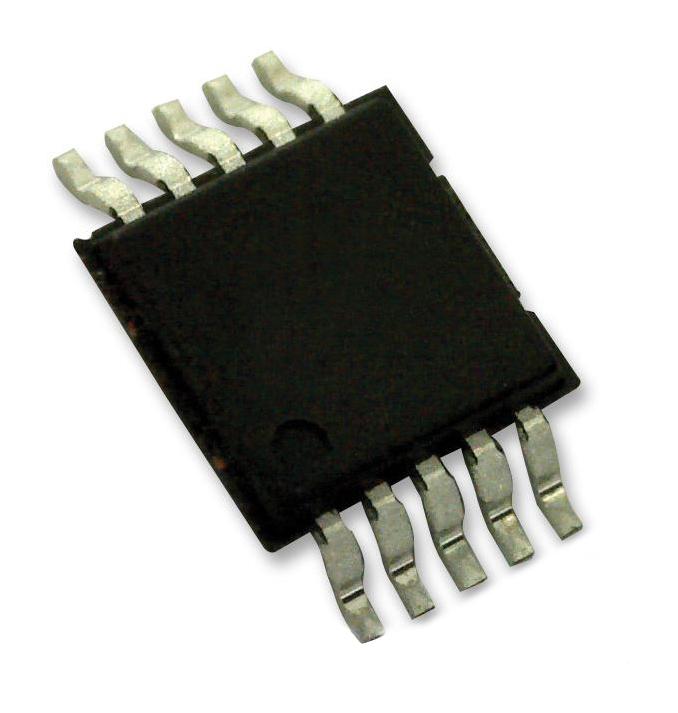

MAXIM INTEGRATED / ANALOG DEVICES MAX1485EUBT RS-485 Transceiver
The MAX1485 transceiver provides high-speed, software-selectable, half- or full-duplex RS-485/RS-422 communication in a compact 10-pin uMAX package. Designed for space-constrained applications, it features slew-rate limiting to minimize EMI and reflections, enabling error-free data transmission up to 250 kbps in half-duplex and 12 Mbps in full-duplex modes. It supports up to 256 transceivers on a single bus, has integrated thermal shutdown, and operates from a 5V supply, making it ideal for industrial control, battery-powered equipment, and low-power data communication environments.
MAXIM INTEGRATED / ANALOG DEVICES MAX1485EUBT RS-485 Transceiver Specifications:
- Package: 10-pin uMAX
- Operating Voltage: +5V
- Full-Duplex Data Rate: 12 Mbps
- Half-Duplex Data Rate: 250 kbps
- Slew-Rate Limiting: Yes (MAX1485)
- Receiver Input Impedance: 1/8-unit-load (96kΩ), allows up to 256 transceivers on bus
- ESD Protections: Yes
- Thermal Shutdown: Yes
- Low Power Shutdown Mode: 0.1pA (MAX1481)
- Supply Current: 300pA (normal), 0.1pA (shutdown, MAX1481)
- Temperature Range: -40°C to +85°C
- Protections: Short-circuit output current limit, thermal shutdown
- Operation Modes: Half- / Full-duplex (H/F pin controlled)
- Application: Industrial control, low-power communication, multipoint data lines
Buy the Buy Maxim RS-485/RS-422 Transceiver Part Number MAX1485EUBT Online
Enhance your communication systems with the MAX1485 RS-485/RS-422 transceiver, featuring compact uMAX package, 12 Mbps full-duplex, and software-selectable modes. Ideal for industrial control, battery-powered devices, and multipoint networks, this high-speed transceiver minimizes EMI with slew-rate limiting and supports up to 256 transceivers on a single bus. Operates from a 5V supply, with thermal shutdown for added protection, ensuring robust and reliable data transfer in space-constrained environments. Upgrade your system today for high performance and low power consumption.
Buy Maxim MAX1485EUBT now and experience unmatched reliability and performance in industrial low-power communication systems.
