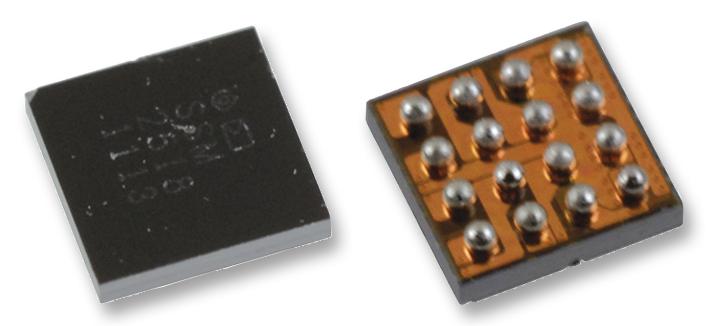

MAXIM INTEGRATED / ANALOG DEVICES MAX44298UWET Power Monitoring Circuit
The MAX44298 is a high-precision low-side current, voltage, and power monitoring circuit designed for accurate power management and energy efficiency applications. It provides scaled analog output currents proportional to load current, voltage, and instantaneous power with less than 1.1% total error, ensuring measurement accuracy. The device incorporates auto-zeroed current-sense amplifiers, programmable full-scale ranges, and a calibration feature, all in a compact 16-bump WLP package suitable for space-constrained systems. Ideal for data centers, renewable energy, and battery management, it operates from a single 3V to 5.5V supply over a wide temperature range.
MAXIM INTEGRATED / ANALOG DEVICES MAX44298UWET Power Monitoring Circuit Specifications:
- Supply Voltage Range: 3V to 5.5V
- Package: 16-bump WLP, 2.4mm x 2.4mm
- Operating Temperature: 0°C to +85°C
- Total Error: Less than 1.1%
- Full-Scale Current Options: 50μA or 100μA, selectable via ISET
- Sense Resistor Range: 5mV, 10mV, 20mV full-scale Vsense
- Input Voltage Range: 0.45V to 1.005V
- Power Dissipation: <1.3mA current consumption
- Accuracy: 1% at calibration points
- Auto-zeroed current-sense amplifier, low offset voltage (5μV)
- Includes calibration mode with fixed 10nA source
- Reference output: 50μA or 100μA full-scale current
- Noise Density: 50μVrms to 400μVrms depending on configuration
- Power measurement: proportional scaled output for load and power
- Compliance voltage output: 300mV
- Rejection Ratio: PSRR up to 110dB
Buy the Maxim Series Power Monitor: Low-Side Current, Voltage, and Power Measure MAX44298UWET
Purchase the Maxim MAX44298UWET online today for precise low-side current, voltage, and power measurement. Its compact design and excellent accuracy make it ideal for data centers, renewable energy setups, and smart battery systems. With integrated auto-zeroed amplifiers, programmable full-scale ranges, and calibration capabilities, it ensures reliable energy monitoring in space-constrained applications. Easy to incorporate in your system, this device provides scalable measurements, reduces wiring complexity, and enhances overall energy efficiency—perfect for industrial and IoT applications needing precise power management.
Get Maxim MAX44298UWET today—compact, high-accuracy power sensing for advanced energy management systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX44298UWET?
You can click on the BUY or RFQ button to purchase MAX44298UWET from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX44298UWET?
You can download the MAX44298UWET datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX44298UWET?
MAXIM INTEGRATED / ANALOG DEVICES
