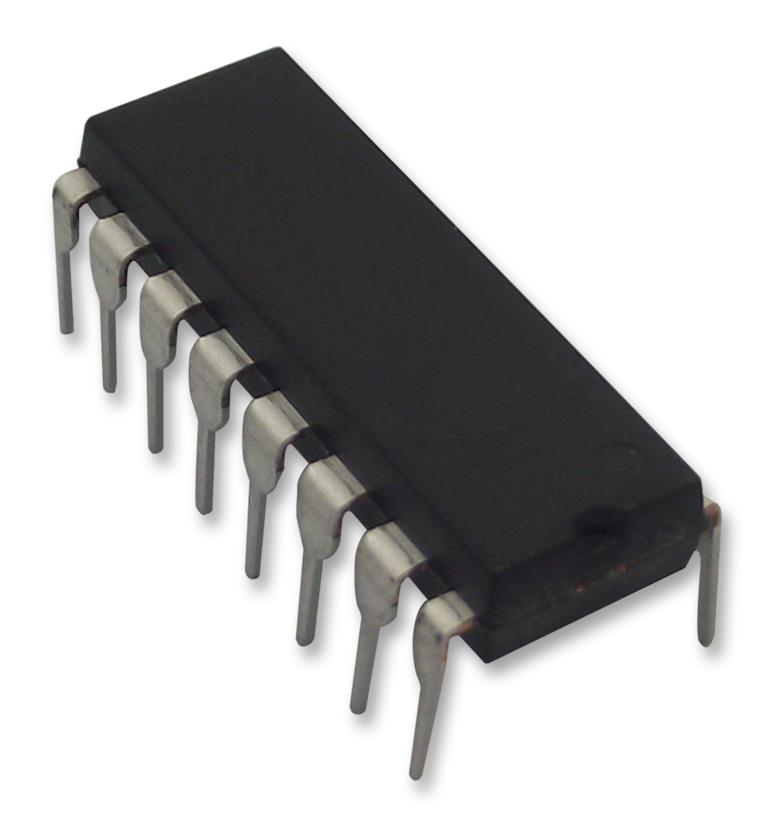

MAXIM INTEGRATED / ANALOG DEVICES MAX3232ECPE RS-232 Transceiver
The MAX3232ECPE+ is a ±15KV electrostatic discharge (ESD) protected, true RS-232 transceiver housed in a 16-pin DIP package. It operates on 3V to 5.5V power supply, offering low power consumption, high data transfer rates, and enhanced ESD protection on all transmitter outputs and receiver inputs. The device features an internal dual charge pump with only four small 0.1µF capacitors, allowing true RS-232 communication at low voltages. It includes two receivers and two transmitters, and is fully compatible with the standard MAX232. The device supports data rates up to 250 kbps and operates within a temperature range of 0°C to 70°C, with a maximum transition slew rate of 30 V/µs (for capacitances from 150 pF to 1000 pF). Its applications include communications and networking, consumer electronics, and portable devices. Note that delivery times may be affected due to high demand, and the product is exempt from discounts.
MAXIM INTEGRATED / ANALOG DEVICES MAX3232ECPE RS-232 Transceiver Specifications:
- Electrostatic Discharge (ESD) Protection: ±15KV
- Supply Voltage Range: 3V to 5.5V
- Data Rate: Up to 250 kbps
- Package: 16-pin DIP
- Operating Temperature Range: 0°C to 70°C
- Charge Pump: Internal dual charge pump with four 0.1µF capacitors
- Transmitter Count: Two transmitters
- Receiver Count: Two receivers
- Transition Slew Rate: 30 V/µs (for 150 pF to 1000 pF capacitance)
- Application Areas: Communications, networking, consumer electronics, portable devices
Buy the Buy Maxim RS-232 Transceiver Part Number MAX3232ECPE+ Online
Secure your communication projects today by ordering the MAX3232ECPE+ online. This reliable RS-232 transceiver operates from 3V to 5.5V, supporting data rates up to 250kbps. Designed for low power consumption, it features enhanced electrostatic discharge protection of ±15KV, safeguarding against static damage during handling. Its internal dual charge pump requires only four tiny 0.1µF capacitors, making it ideal for networking, consumer electronics, and portable devices. Order now to ensure quick delivery and seamless integration into your systems.
Buy Maxim MAX3232ECPE+ now and experience unmatched reliability and performance in serial communication solutions.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX3232ECPE?
You can click on the BUY or RFQ button to purchase MAX3232ECPE from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX3232ECPE?
You can download the MAX3232ECPE datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX3232ECPE?
MAXIM INTEGRATED / ANALOG DEVICES
