MAXIM INTEGRATED / ANALOG DEVICES MAX8510EXK45T Low-Noise Voltage Regulator
The MAX8510EXK45T is an ultra-low noise, high PSRR low dropout linear voltage regulator in a 5-pin SC-70 package. It provides a fixed output voltage of 4.5V and is capable of delivering up to 120mA of continuous current. This regulator features an advanced architecture that achieves an output voltage noise of 11 microvolts RMS between 100Hz and 100kHz, with a Power Supply Rejection Ratio (PSRR) of 78dB at 1kHz. It offers a low dropout voltage of 120mV at 120mA load, using a P-channel MOSFET pass transistor, ensuring very low ground current of 40 microamps. The device is designed for stability with small, low-cost ceramic capacitors, requiring only 1 microfarad of output capacitance. When disabled, current consumption falls below 1 microamp. It operates over a temperature range from -40°C to 85°C and input voltages from 2V to 6V. The regulator provides excellent transient response for load and line changes and includes overcurrent and thermal protection features. Suitable for space-constrained applications, it is ideal for power management in portable devices, consumer electronics, communications, and wireless systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX8510EXK45T Low-Noise Voltage Regulator Specifications:
- Package: SC-70
- Output Voltage: 4.5V
- Maximum Output Current: 120mA
- Output Noise: 11uVRMS between 100Hz and 100kHz
- PSRR: 78dB at 1kHz
- Dropout Voltage: 120mV at 120mA load
- Input Voltage Range: 2V to 6V
- Ground Current: 40μA (typical)
- Operating Temperature: -40°C to 85°C
- Requires only 1μF ceramic output capacitor for stability
- Low disable current: below 1μA
- Built-in overcurrent and thermal protection
- Designed for low noise and transient response
- Advanced architecture with P-channel MOSFET pass transistor

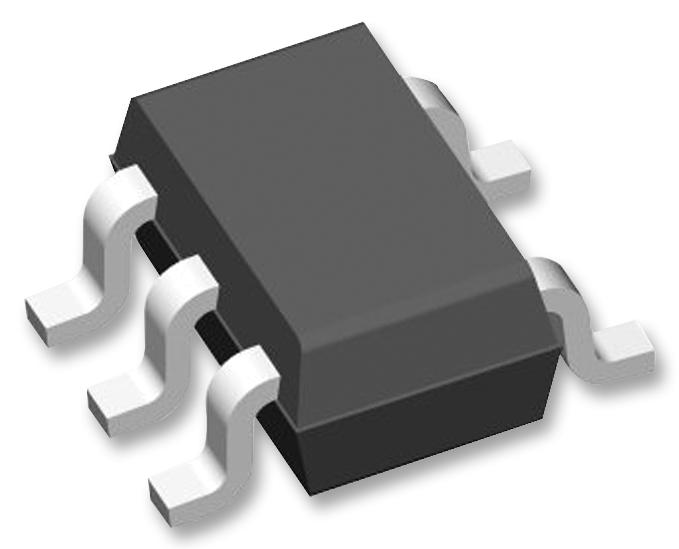

Buy the Maxim Series MAX8510 4.5V Low-Noise Regulator: MAX8510EXK45T
Purchase the Maxim MAX8510EXK45T online today and enjoy reliable, low-noise voltage regulation for portable electronics and space-optimized designs. This ultra-low noise, high PSRR regulator delivers 4.5V output at up to 120mA with a dropout voltage as low as 120mV, ideal for sensitive RF and analog circuits. Its small SC-70 package saves valuable space, making it perfect for battery-powered devices, wireless modules, and compact consumer electronics. Designed for stability with minimal external components, it ensures superior transient response and excellent thermal and overcurrent protections. Experience seamless, low-noise power management by ordering this high-performance regulator today.
Buy Maxim MAX8510EXK45T low-noise regulator now and ensure stable, space-efficient power for your portable and wireless devices.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX8510EXK45T?
You can click on the BUY or RFQ button to purchase MAX8510EXK45T from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX8510EXK45T?
You can download the MAX8510EXK45T datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX8510EXK45T?
MAXIM INTEGRATED / ANALOG DEVICES
