MAXIM INTEGRATED / ANALOG DEVICES MAX382CWN 8-Channel Multiplexer

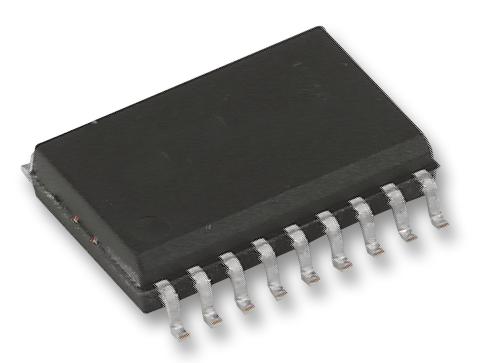

The MAX382CWN+ is a low-voltage, 8-channel multiplexer with latchable inputs housed in an 18-pin WSOIC package. It features a maximum on-resistance of 100 ohms, with channels matched within 4 ohms. The device exhibits very low off-leakage current of less than 2.5nA at +85°C and offers guaranteed low charge injection of up to 10pC. Built with robust ESD protection exceeding 2000V per Method 3015.7, this multiplexer is suitable for battery-operated systems, low-voltage data acquisition, sample-and-hold circuits, and automatic test equipment. It operates over a supply voltage range of 2.7V to 16.5V (±3V to ±8V) and a temperature range of 0°C to 70°C. It is pin-compatible with industry-standard devices such as DG428/DG429, DG528/DG529, and MAX368/MAX369. The device consumes low power, is TTL/CMOS logic compatible, and is ideal for signal processing and portable device applications.

View MAX382CWNDatasheet [pdf]

Buy the Maxim Series MAX382: Low-Voltage 8-Channel Multiplexer: MAX382CWN

Purchase the Maxim MAX382CWN online today and ensure reliable signal switching with low on-resistance, minimal leakage, and robust ESD protection. Ideal for battery-powered systems, data acquisition, sample-and-hold circuits, and automated test setups, this low-voltage multiplexer offers excellent performance at 2.7V to 16.5V supply voltages. Its compact 18-pin WSOIC package allows easy integration into your designs. With low power consumption, guaranteed channel matching, and industry-standard pin compatibility, the MAX382CWN provides an efficient and dependable solution for your signal routing needs—order now and enhance your electronic projects with top-tier multiplexing performance.

Buy Maxim MAX382CWN now and experience unmatched reliability and performance in low-voltage signal multiplexing and portable device applications.
