MAXIM INTEGRATED / ANALOG DEVICES MAX41473GTC RF Receiver
The MAX41473/MAX41474 are high-performance, low-power RF receivers suitable for ASK and FSK modulations in sub-1GHz bands. They operate across three frequency bands—287-320MHz, 425-480MHz, and 860-960MHz—using a single 16MHz crystal. Features include programmable I2C interface, excellent RF sensitivity, integrated IF filter, LNA, mixer, PLL with VCO, RSSI, and digital demodulation. They operate from 1.8V to 3.6V, perform in rugged temperature ranges, and support applications from home automation to security systems, with low current consumption and fast startup times.
MAXIM INTEGRATED / ANALOG DEVICES MAX41473GTC RF Receiver Specifications:
- Frequency Bands: 287-320MHz, 425-480MHz, 860-960MHz
- Supply Voltage Range: 1.8V to 3.6V
- Operating Temperature Range: -40°C to +105°C

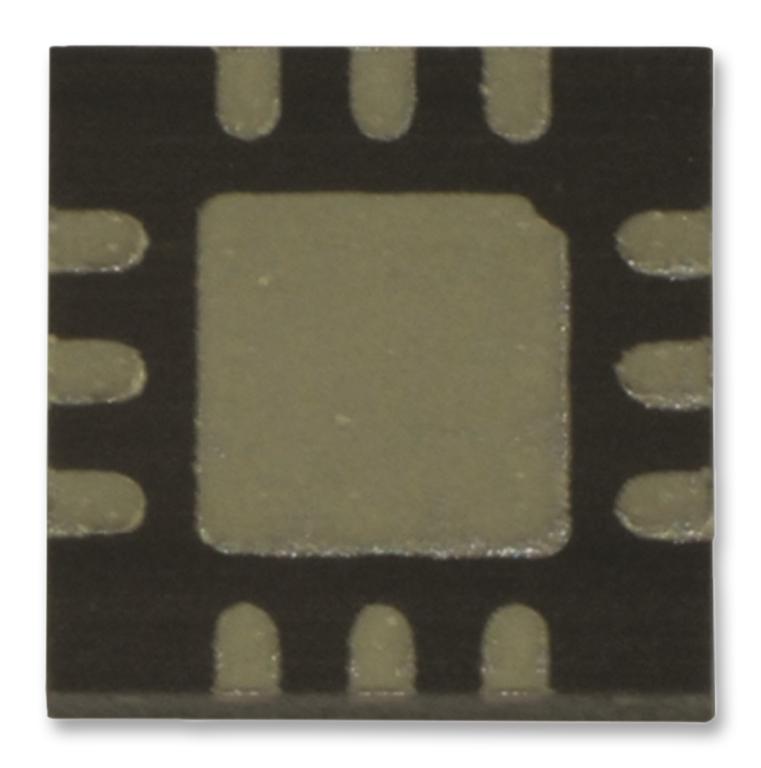

- Package: 12-pin thin QFN, 4mm x 4mm
- Sensitivity: -118dBm (ASK), -116dBm (FSK)
- Data Rate Support: Up to 200kbps
- IF Filter Bandwidth: 350kHz (400kHz IF), 175kHz (200kHz IF)
- Integrated Components: LNA, mixer, PLL, VCO, RSSI, digital demodulation
- Power Consumption: as low as 9mA active, 10nA shutdown
- Programming Interface: I2C, preset mode available
- Preamble Detection and Self-Polling Modes for Low Power
- Image Rejection: 33dB (calibrated), passes ETSI Category 2
- Crystal Load Capacitance: 8pF with recommended startup time ~380μs
Buy the Buy MAXIM RF Receiver Part Number MAX41473GTC Online
Order the MAX41473GTC RF receiver today for reliable ASK/FSK signal reception across sub-1GHz bands. Designed for low power consumption and high sensitivity, this 12-pin QFN device supports fast startup, programmable I2C interface, digital demodulation, and excellent image rejection. Perfect for home automation, security, remote control, and industrial applications, the MAX41473GTC ensures robust performance in rugged environments. Buy online now to elevate your RF design with proven, high-performance components engineered for precision and durability.
Get MAXIM MAX41473GTC today—built for precision, high sensitivity, and low power in RF communication applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX41473GTC?
You can click on the BUY or RFQ button to purchase MAX41473GTC from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX41473GTC?
You can download the MAX41473GTC datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX41473GTC?
MAXIM INTEGRATED / ANALOG DEVICES
