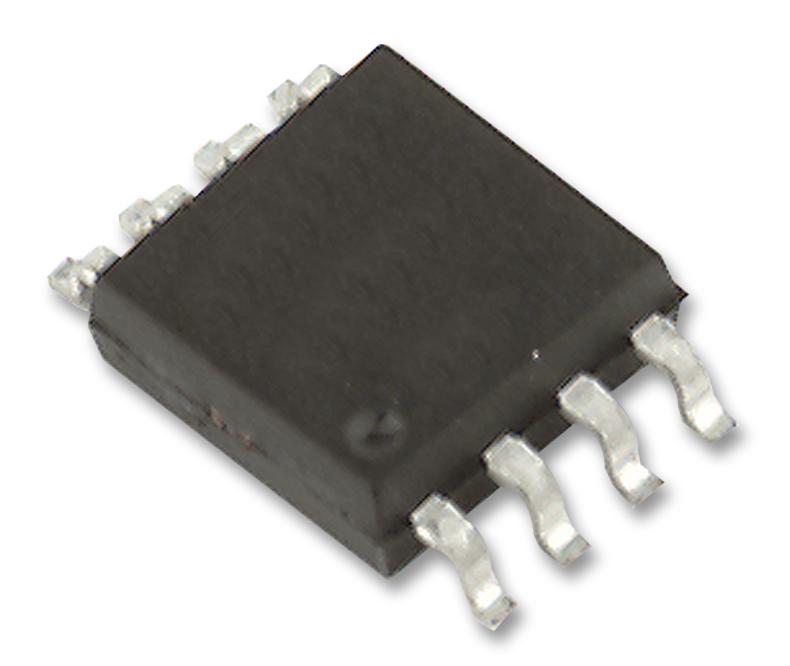

MAXIM INTEGRATED / ANALOG DEVICES MAX44241AUA precision op-amp
The MAX44241AUA+ is a low-noise, ultra-precision single operational amplifier housed in an 8-pin µMAX package. It features patented auto-zeroing and chopper-stabilized techniques, achieving near-zero DC offset and minimal drift across temperature, significantly reducing 1/f noise. Designed for high-accuracy applications, it consumes only 0.42mA per channel, offers an input voltage noise of 9nV/√Hz at 1kHz, and operates over a wide voltage range of ±1.35V to ±18V (2.7V to 36V). Suitable for transducer amplifiers, load cells, industrial sensing, and battery-powered systems, it functions reliably from -40°C to 125°C, with excellent PSRR and CMRR, high gain bandwidth, fast settling time, and integrated EMI filtering, making it ideal for precision analog processing.
MAXIM INTEGRATED / ANALOG DEVICES MAX44241AUA precision op-amp Specifications:
- Package: 8-pin µMAX
- Supply Voltage Range: ±1.35V to ±18V (2.7V to 36V)
- Input Voltage Noise: 9nV/√Hz at 1kHz
- Input Bias Current: 300pA at 25°C
- Input Offset Current: 600pA at 25°C
- Input Offset Voltage: 1µV max
- Offset Voltage Drift: 1nV/°C
- Power Supply Rejection Ratio: 166dB at 25°C
- Common-Mode Rejection Ratio: 166dB
- Gain Bandwidth Product: 5MHz
- Slew Rate: 3.8V/µs at VDD=30V
- Open-Loop Gain: 168dB
- Settling Time: 1µs at VDD=10V
- Operating Temperature Range: -40°C to 125°C
- EMI Filter: Integrated
Buy the Maxim Series MAX44241 Ultra-Precision Low-Noise Amplifier: MAX44241AUA+
Purchase the Maxim MAX44241AUA+ online today to leverage its ultra-low noise, auto-zeroing capabilities, and wide supply voltage support. This precision op-amp ensures high accuracy in measurement applications such as transducer and load cell amplification, industrial instrumentation, and battery-powered systems. Its low bias current, minimal offset voltage, and fast settling time make it ideal for high-bandwidth and low-noise signal processing, reducing calibration needs and enhancing overall system reliability. Order now for fast delivery and exceptional performance.
Buy Maxim MAX44241AUA+ low-noise precision op-amp now and experience unmatched accuracy and stability for high-performance sensing and instrumentation.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX44241AUA?
You can click on the BUY or RFQ button to purchase MAX44241AUA from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX44241AUA?
You can download the MAX44241AUA datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX44241AUA?
MAXIM INTEGRATED / ANALOG DEVICES
