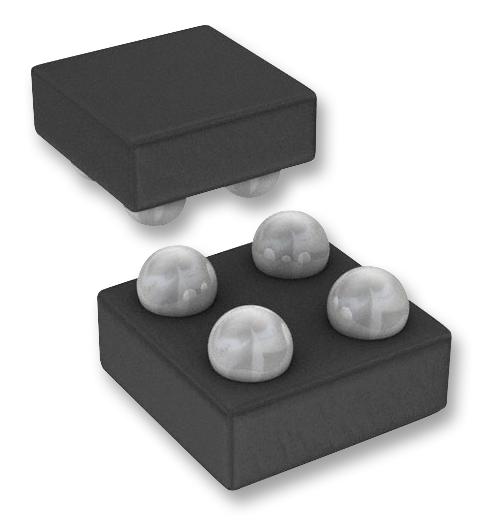

MAXIM INTEGRATED / ANALOG DEVICES MAX44286FAZST Current-Sense Amplifier
The MAX44286 is a low-power, high-precision high-side current-sense amplifier in a compact 4-bump ultra-thin WLP package, measuring 0.78mm x 0.78mm x 0.35mm. It features ultra-low input offset voltage, low gain error, and a wide supply voltage range from 1.6V to 5.5V, making it ideal for space-constrained portable devices such as smartphones, medical equipment, and battery-powered systems. The amplifier offers four gain options (25V/V, 50V/V, 100V/V, 200V/V) for versatile sensing, with minimal power consumption of approximately 12.5nA at 200kHz bandwidth, ensuring high accuracy in current measurements.
MAXIM INTEGRATED / ANALOG DEVICES MAX44286FAZST Current-Sense Amplifier Specifications:
- Package Type: 4-bump WLP (0.78mm x 0.78mm x 0.35mm)
- Supply Voltage Range: 1.6V to 5.5V (up to 125°C), 1.8V to 5.5V (up to 125°C automotive)
- Input Offset Voltage: Max 7μV
- Gain Options: 25V/V, 50V/V, 100V/V, 200V/V
- Gain Error: Max 0.23%
- Input Common-Mode Range: -0.3V to Vps+ + 0.3V
- Power Consumption: Approx. 12.5nA at 200kHz bandwidth
- Sense Resistor Compatibility: Low value for minimal power loss
- Output Voltage Swing: Limited by sense voltage and supply
- Operating Temperature Range: -40°C to +125°C
- Thermal Resistance: 103°C/W (Junction-to-Ambient)
Buy the Maxim MAX44286 – Reliable High-Precision Current Sense Amplifier for Industrial Applications
Enhance your electronic system with the Maxim MAX44286, a space-efficient, ultra-low offset high-side current-sense amplifier. Its four gain options and ultra-low power consumption make it perfect for portable devices, medical equipment, and industrial applications. With a wide supply voltage range and excellent temperature stability, it ensures precise current measurement even in space-constrained designs. Easily integrate this miniature amplifier into your power management and sensing solutions for reliable, accurate monitoring across various environments and demanding applications.
Buy Maxim MAX44286 high-side current-sense amplifier now and enjoy accurate, space-saving, and low-power current measurement ideal for portable and industrial devices.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX44286FAZST?
You can click on the BUY or RFQ button to purchase MAX44286FAZST from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX44286FAZST?
You can download the MAX44286FAZST datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX44286FAZST?
MAXIM INTEGRATED / ANALOG DEVICES
