MAXIM INTEGRATED / ANALOG DEVICES MAX4450EXKT High-Speed Operational Amplifier
The MAX4450EXK+T is a compact, low-cost operational amplifier capable of operating at a bandwidth of 210MHz with rail-to-rail outputs, housed in a 5-pin SC-70 package. It operates from a single supply voltage ranging from +4.5V to +11V or dual supplies from ±2.25V to ±5.5V. The amplifier's common-mode input voltage can extend beyond the negative rail (ground in single supply mode). It requires only 6.5mA of quiescent current per amplifier, offering a bandwidth of 210MHz (-3dB), a slew rate of 485V/μs, and flat bandwidth up to 55MHz at 0.1dB gain flatness. Suitable for low power and low voltage applications, it is ideal for video, communication, and instrumentation systems. Key features include low differential gain (0.02%) and phase (0.08°), low distortion at 5MHz (-65dBc SFDR, -63dB total harmonic distortion), and operational temperature range from -40°C to 85°C. Typical applications encompass signal processing, communication and networking, portable devices, audio systems, baseband applications, battery-powered systems, keyless entry, and portable communications. Note: Due to high market demand, lead times may be extended, and delivery dates are subject to fluctuation. This product is exempt from discounts.
MAXIM INTEGRATED / ANALOG DEVICES MAX4450EXKT High-Speed Operational Amplifier Specifications:
- Package: 5-pin SC70
- Bandwidth: 210MHz (-3dB)
- Gain Flatness: 55MHz at 0.1dB
- Slew Rate: 485V/μs
- Supply Voltage: +4.5V to +11V (single), ±2.25V to ±5.5V (dual)
- Quiescent Current: 6.5mA per amplifier
- Common-Mode Input Voltage Range: Extends beyond VEE (ground)
- Output Voltage Swing: Within 55mV of supply rails
- Input Voltage Range: Can extend beyond negative rail
- Housed in: SC-70 package
- Operating Temperature: -40°C to 85°C
- Distortion at 5MHz: -65dBc SFDR, -63dB THD
- Applications: Video systems, communications, instrumentation, portable devices, audio, baseband

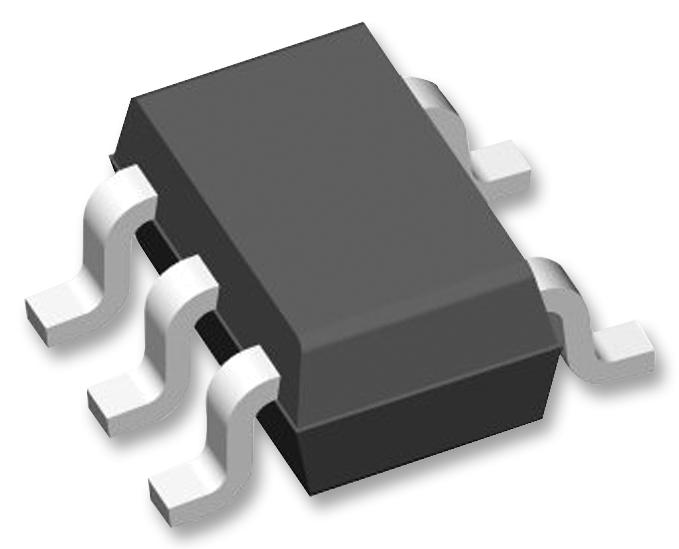

Buy the Buy MAXIM MAX4450EXK+T Op Amp Part Number MAX4450EXK+T Online
Enhance your electronic system with the MAX4450EXK+T high-speed op amp. It features 210MHz bandwidth, rail-to-rail outputs, and low distortion, making it perfect for video, communication, and instrumentation. Its compact SC-70 package and single supply operation from 4.5V to 11V ensure easy integration into low-power circuits. With a quiescent current of just 6.5mA and excellent performance at -40°C to 85°C, this amplifier offers reliable, high-frequency signal processing for portable and industrial applications. Order now to optimize your design efficiency and system performance.
Buy MAXIM MAX4450EXK+T now and experience unmatched reliability and performance in high-frequency, low-voltage applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX4450EXKT?
You can click on the BUY or RFQ button to purchase MAX4450EXKT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX4450EXKT?
You can download the MAX4450EXKT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX4450EXKT?
MAXIM INTEGRATED / ANALOG DEVICES
