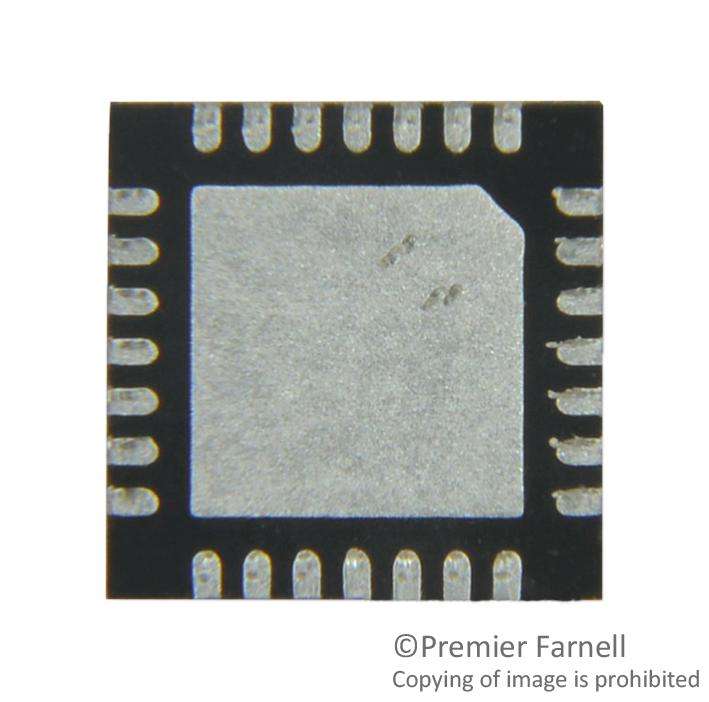

MAXIM INTEGRATED / ANALOG DEVICES MAX8903CETI Lithium-Ion Charger
The MAX8903CETI+ is an integrated single-cell lithium-ion battery charger and smart power selector, available in a 28-pin TQFN package. It features dual input sources—USB and AC adapter—and uses a high switching frequency to reduce heat and minimize external components. The device can operate from separate or combined inputs, with on-chip power switches managing charging and load switching between battery and external power. It includes functions such as pre-qualification charging, fast charging, overvoltage protection, charge status indicators, fault monitoring, power-OK monitoring, and battery thermistor measurement. Internal thermal management reduces charging and current draw to prevent overheating. Key features include optimized power control via USB or adapter, input voltage ranges of 4.15V to 16V (DC) and 4.1V to 6.3V (USB), a maximum switching frequency of 4MHz, and an integrated current sense resistor with a system switch resistance of 50 milliohms. The charger supports independent current limit settings for battery charge and system load, and any unused power is directed to charge the battery. No external MOSFETs or diodes are required, making it a compact solution suitable for power management in multimedia and portable devices.
MAXIM INTEGRATED / ANALOG DEVICES MAX8903CETI Lithium-Ion Charger Specifications:
- Package: 28-pin TQFN
- Input Voltage Range DC: 4.15V to 16V
- USB Input Voltage Range: 4.1V to 6.3V
- Switching Frequency: Up to 4MHz
- Current Sense Resistance: 50 milliohms
- Supports independent charge and system load current limits up to 2A
- Includes pre-qualification, fast charge, overvoltage protection, fault detection
- Internal thermal limit reduces current to prevent overheating
- No external MOSFETs or diodes required
- Supports charging from separate or combined inputs, with automatic switching
- Battery thermistor monitoring for temperature-based charge control
Buy the Maxim Series MAX8903C Lithium-Ion Charger: 4.15V-16V, 4MHz, 28-pin TQFN
Order the Maxim MAX8903C lithium-ion battery charger today to enjoy seamless power management for portable devices. This compact, high-frequency solution supports dual USB and AC inputs, with adjustable current limits and robust protection features, making it ideal for multimedia, mobile, and wearable technology. Its integrated thermal management prevents overheating, ensuring safety and reliability. Designed for easy integration, this charger reduces external components and simplifies PCB layout, delivering a reliable power solution that enhances your product’s performance and battery longevity. Purchase online now for fast delivery and technical support.
Buy Maxim MAX8903C now and experience compact, efficient power management with integrated battery charging and load switching features.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX8903CETI?
You can click on the BUY or RFQ button to purchase MAX8903CETI from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX8903CETI?
You can download the MAX8903CETI datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX8903CETI?
MAXIM INTEGRATED / ANALOG DEVICES
