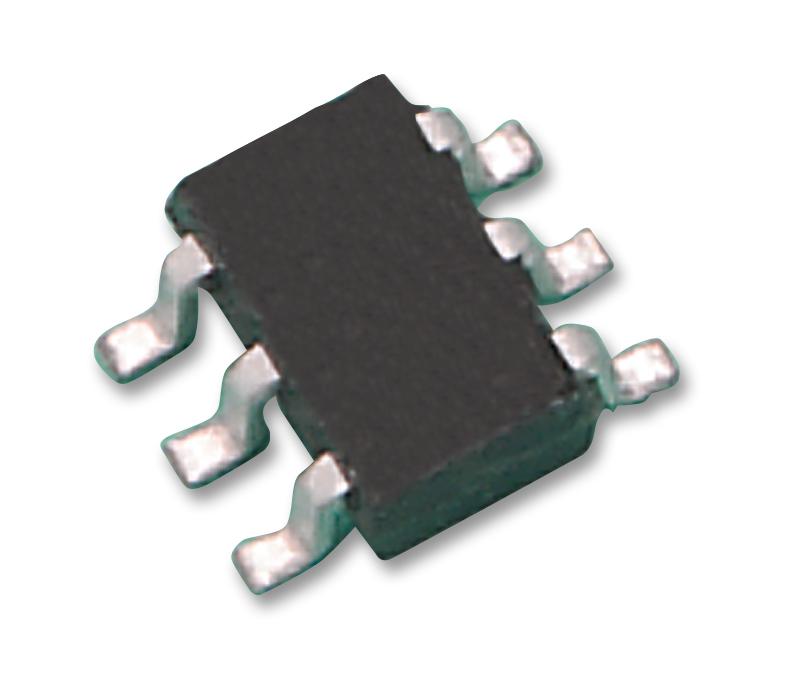

MAXIM INTEGRATED / ANALOG DEVICES MAX6323AUT46T Microprocessor Supervisor
The MAX6323/MAX6324 are microprocessor supervisory circuits designed to monitor power supplies and CPU activity in digital systems. They feature a windowed watchdog timer with eight factory-trimmed timeout periods, six reset threshold levels with +2.5% accuracy from 2.32V to 4.63V, and can generate a valid reset down to 1.2V Vcc. The RESET output can be push-pull or open-drain, asserted low during power dips or manual reset. The open-drain watchdog pulse output triggers on fast or slow faults, asserting for 1ms. Designed for low power operation, these devices come in a compact 6-pin SOT23 package and are extended temperature rated (-40°C to +125°C).
MAXIM INTEGRATED / ANALOG DEVICES MAX6323AUT46T Microprocessor Supervisor Specifications:
- Supply Voltage Range: 1.2V to 5.5V
- Reset Threshold Voltages: 2.32V to 4.63V (six levels, +2.5% accuracy)
- Reset Delay: 100-280ms after Vcc exceeds threshold
- Watchdog Timeout Periods: 1.5ms to 719ms (eight factory-trimmed options)
- Watchdog Input Pulse Width: minimum 300ns
- Watchdog Output: open-drain; pulses low for 1ms upon fault detection
- Reset Output: push-pull or open-drain, asserted low on power dips or manual reset
- Manual Reset Input: active-low with 1μs minimum pulse width, internally pulled-up
- Package: 6-pin SOT23, extended temperature range -40°C to +125°C
- Max Total Power Dissipation: 8.7mW/°C beyond 70°C
- Operating Current: approximately 23μA typical at 3V
- Transient Immunity: Vcc drop below 1.2V has limited reset validity
- Designed for automotive, industrial, medical, embedded control applications
