MAXIM INTEGRATED / ANALOG DEVICES MAX4663CAE Quad CMOS Analog Switch
The MAX4663CAE+ is a quad SPST CMOS analog switch in a 16-pin SSOP package, supporting rail-to-rail signal switching with low leakage current of 5nA at 85°C. It is designed for low-distortion applications and is a reliable replacement for mechanical relays in automatic test equipment and current switching. Features include low power consumption, minimal space, and a separate logic supply pin for TTL/CMOS compatibility across 4.5V to 36V. Operating from 0°C to 70°C, it has two NC and two NO switches, with key electrical specs such as 4Ω maximum on-resistance, 0.4Ω on-resistance match, -60dB crosstalk at 1MHz, and 125ns break-before-make switching time at 25°C. It is ideal for avionics, communication systems, audio routing, ADC, and data acquisition. Delivery times may be extended due to high demand, and discounts are not available.
MAXIM INTEGRATED / ANALOG DEVICES MAX4663CAE Quad CMOS Analog Switch Specifications:
- Package Type: 16-pin SSOP
- Operating Temperature Range: 0°C to 70°C
- Supply Voltage Range: 4.5V to 36V
- Logic Supply Voltage: 4.5V to 20V
- Maximum On-Resistance: 4Ω at 25°C
- On-Resistance Match: 0.4Ω between channels
- Off-Leakage Current: 5nA at 85°C
- On-Resistance Flatness: 0.7Ω
- Crosstalk at 1MHz: -60dB
- Break-Before-Make Time: 125ns at 25°C
- ESD Protection: >2000V
- Switch Type: Quad SPST CMOS Analog Switch
- Switch Configuration: 2 NC, 2 NO, with break-before-make
- Application: avionics, communication, audio routing, ADC systems, test equipment, data acquisition

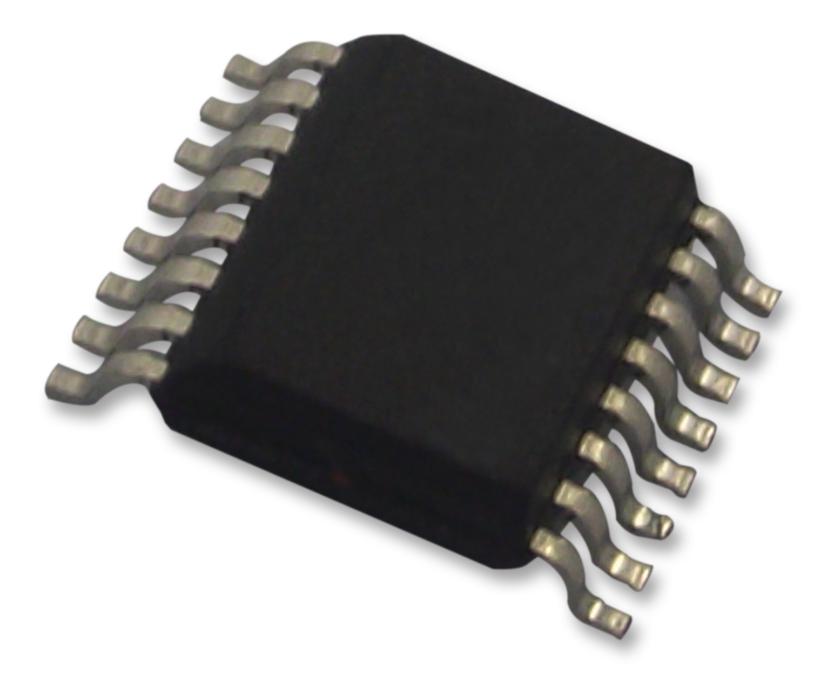

Buy the Buy MAXIM MAX4663 Part Number MAX4663CAE Online
Purchase the MAXIM MAX4663CAE online today and benefit from its low on-resistance, minimal leakage current, and high reliability in various low-distortion, high-precision applications. Its support for rail-to-rail signals, wide voltage operation, and integration into small 16-pin SSOP packages make it ideal for avionics, communications, audio routing, ADC systems, and test equipment. Order now to ensure quick delivery and enjoy the competitive advantage of top-tier switching performance in your electronics design.
Buy MAXIM MAX4663 now and experience reliable high-performance switching for your signal routing and data acquisition applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX4663CAE?
You can click on the BUY or RFQ button to purchase MAX4663CAE from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX4663CAE?
You can download the MAX4663CAE datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX4663CAE?
MAXIM INTEGRATED / ANALOG DEVICES
