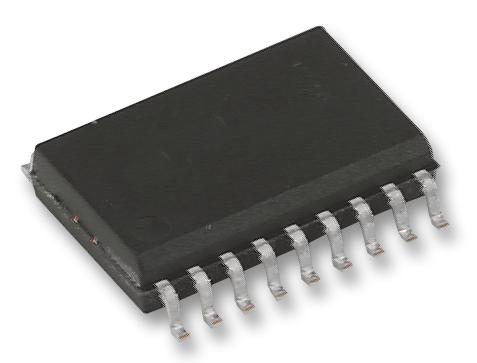

MAXIM INTEGRATED / ANALOG DEVICES DG529CWN 8-Channel Multiplexer

The DG529CWN+ is a monolithic 8-channel latchable CMOS multiplexer in an 18-pin WSOIC package. This low-power device features onboard address and control latches, simplifying design and reducing board space in microprocessor-based applications. It functions as a single-ended, 2-of-8 multiplexer or demultiplexer with break-before-make switching to prevent shorting of input signals. The device can operate with dual power supplies ranging from ±4.5V to ±20V or a single supply from +5V to +30V. All logic inputs are TTL and CMOS compatible. It is pin and electrically compatible with the industry-standard DG529 and ADG529 devices. Typical applications include data acquisition systems, automatic test equipment, and microprocessor-controlled systems. Additional features include microprocessor bus compatibility, an operating temperature range of 0°C to 70°C, low on-resistance of 450 ohms, a break-before-make interval of 0.2 microseconds, charge injection of 4pC, and low leakage currents.

View DG529CWNDatasheet [pdf]

Buy the Maxim Series DG529 Multiplexer: DG529CWN

Purchase the Maxim DG529CWN online today to incorporate high-performance, low-power CMOS multiplexing technology into your data acquisition, testing, or control systems. Designed for versatility, this 8-channel latchable device offers onboard latches, broad voltage operation, TTL/CMOS compatibility, and low on-resistance, ensuring reliable performance. Its break-before-make switching and low charge injection make it ideal for sensitive applications requiring minimal signal distortion. Easy to integrate into microprocessor-based systems, this device guarantees efficiency, accuracy, and durability for your industrial automation.

Get Maxim DG529CWN today—built for precision and long-lasting durability in your multiplexing applications.
