MAXIM INTEGRATED / ANALOG DEVICES MAX4885ETJ VGA Multiplexer
The MAX4885 is a versatile VGA multiplexer supporting 1:2 and 2:1 configurations, suitable for high-quality video signal switching in applications like monitors, projectors, and servers. It integrates high-bandwidth analog switches and level-translating buffers for RGB, HSYNC, VSYNC, and DDC signals. Features include low on-resistance, low capacitance, ESD protection up to +8kV, and a built-in charge pump for better performance. Compact and energy-efficient, this device operates over a wide temperature range, making it ideal for demanding visual data routing in professional and consumer electronics.
MAXIM INTEGRATED / ANALOG DEVICES MAX4885ETJ VGA Multiplexer Specifications:
- Supported configurations: 1:2 and 2:1 VGA signal switching
- High-bandwidth analog switches with low on-resistance of 5Ω (typical)
- On-capacitance: 13pF (typical)
- Voltage Clamp Range: V+ to +0.3V
- Supply Voltage: +5V ±10%
- Power Dissipation: 1702mW at +70°C ambient, derated above this temperature
- Operating Temperature: -40°C to +85°C
- ESD protection: ±8kV (HBM)
- Charge pump provides doubled gate voltage with noise less than 50μVp-p
- Tiny 32-pin TQFN package (5mm x 5mm)
- Pins include V+, GND, RGB, HSYNC, VSYNC, DDC, select, enable
- Applications: monitors, projectors, servers, KVM switches, and digital displays
- Features support for TTL and low-voltage controllers, bidirectional signaling in 2:1 mode
- Input/output impedance: approximately 75Ω, with low leakage currents

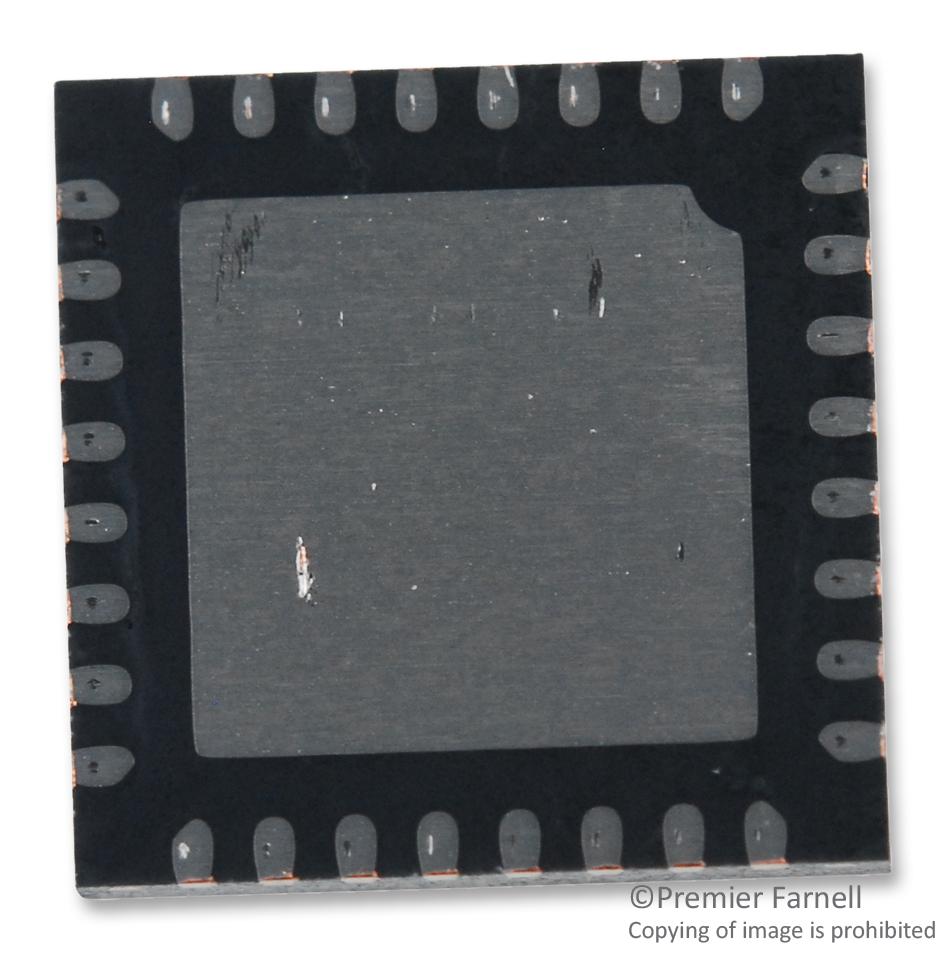

Buy the Buy MAXIM MAX4885ETJ Part Number 4885ETJ Online
Purchase the MAX4885 online today and improve your video routing with this high-performance VGA multiplexer supporting 1:2 and 2:1 configurations. Designed with integrated high-bandwidth analog switches, level translation, and ESD protection, it guarantees reliable performance in demanding environments. Its compact TQFN package, low power consumption, and wide operating temperature range make it suitable for professional monitors, projectors, servers, and KVM switches. Enjoy quick delivery and trusted quality by ordering directly online for your essential visual data switching needs.
Order your MAXIM series MAX4885ETJ today and ensure reliable high-speed VGA signal switching for your professional display or multimedia project.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX4885ETJ?
You can click on the BUY or RFQ button to purchase MAX4885ETJ from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX4885ETJ?
You can download the MAX4885ETJ datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX4885ETJ?
MAXIM INTEGRATED / ANALOG DEVICES
