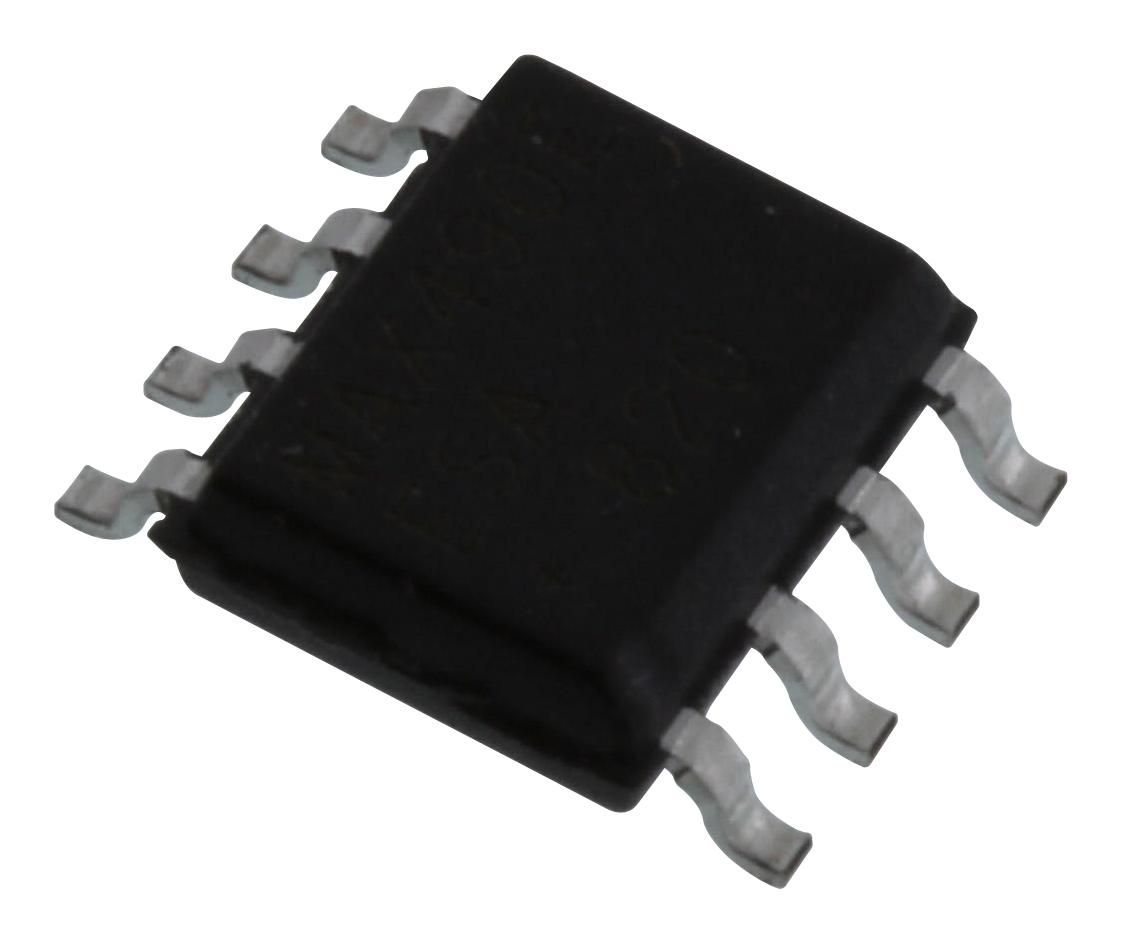

MAXIM INTEGRATED / ANALOG DEVICES MAX490EESA RS-485 Transceiver
The MAX490EESA is a low-power, high-speed RS-485 transceiver designed for harsh environments requiring reliable data communication over long distances. It supports data rates up to 2.5Mbps and features +15kV ESD protection on all pins, along with slew-rate limiting to minimize EMI and signal reflections. The device operates from a single +5V supply and includes driver and receiver enable pins, allowing full-duplex operation for industrial control and building automation systems. Its robust design ensures high reliability and small footprint for space-constrained applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX490EESA RS-485 Transceiver Specifications:
- Supply Voltage: 5V ±5%
- Data Rate: Up to 2.5Mbps
- ESD Protection: +15kV on all pins
- Operation Temperature Range: -40°C to +85°C
- Receiver Input Impedance: 12kΩ (standard), 48kΩ (quarter-unit load)
- Driver Differential Output Voltage: 2V to 5V
- Driver Enable/Disable: Yes
- Receiver Enable/Disable: Yes
- Package: 8 SO, 8 Plastic DIP
- Power Dissipation: 120μA (typical), shutdown mode 0.5μA
- Line Driver and Receiver: Full-duplex, Configurable for half-duplex
- Maximum Transmission Distance: Thousands of feet over twisted pair wire
Buy the Maxim Series RS-485 Transceiver: MAX490EESA
Purchase the Maxim Series MAX490EESA now and ensure reliable RS-485 communication with high ESD protection, low power consumption, and fast data rates up to 2.5Mbps. Ideal for industrial control, automation, and harsh environments, this transceiver offers seamless full-duplex operation, space-efficient packaging, and robust signal integrity. Whether you need to upgrade existing systems or develop new industrial networks, buy online today to benefit from fast delivery, competitive pricing, and trusted quality that maximizes your system reliability and performance.
Order your Maxim Series MAX490EESA today and give your projects the dependable high-speed communication they deserve in industrial environments.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX490EESA?
You can click on the BUY or RFQ button to purchase MAX490EESA from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX490EESA?
You can download the MAX490EESA datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX490EESA?
MAXIM INTEGRATED / ANALOG DEVICES
