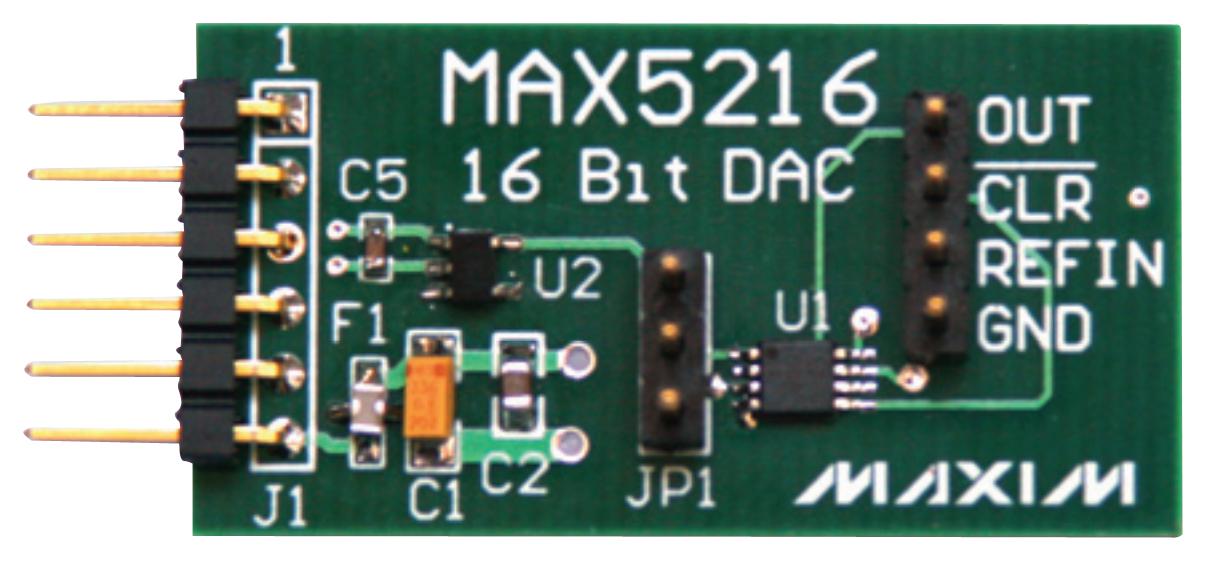

MAXIM INTEGRATED / ANALOG DEVICES MAX5216PMB1 High-Precision DAC Module
The MAX5216PMB1 peripheral module is a 16-bit DAC with a high-accuracy, low-power voltage output designed for seamless integration with Pmod-compatible systems through SPI communication. Featuring a 2.5V reference from an onboard MAX6029 voltage reference, it provides precise voltage output buffered directly to load. The module includes configurable reference voltage selection via jumper and supports external references. It is fully assembled, tested, and ideal for embedded applications requiring accurate digital-to-analog conversion in industrial automation, instrumentation, and control systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX5216PMB1 High-Precision DAC Module Specifications:
- Type: 16-bit buffered voltage-output DAC
- Reference Voltage: 2.5V from onboard MAX6029, optional external reference via jumper
- Interface: SPI-compatible, 2-wire communication (CLK, MOSI, Chip Enable)
- Output Load: Directly drives 10kΩ loads
- Power Supply: Not specified, compatible with typical 3.3V or 5V systems
- Output Accuracy: High-precision with low gain and offset errors
- Input Pins: Chip enable, serial data, serial clock, reference voltage input, ground, power supply
- Physical: Pmod-compatible connector, includes headers and mounting components
- RoHS Compliant
- Dimensions: Based on standard Pmod form factor, detailed in PCB layout images
Buy the Innovative MAXIM MAX5216PMB1 – Reliable 16-Bit DAC for Industrial Applications
Enhance your embedded systems with the MAXIM MAX5216PMB1 high-accuracy 16-bit DAC module featuring a buffered voltage output, SPI interface, and onboard 2.5V voltage reference. This fully assembled peripheral module simplifies integration into Pmod-compatible platforms, delivering precise voltage control essential for industrial automation, instrumentation, and control applications. Its reliable design ensures low noise and high accuracy, making it an ideal choice for demanding digital-to-analog conversion tasks in modern electronic systems. Order online today and elevate your project performance.
Buy MAXIM MAX5216PMB1 now and experience unmatched accuracy and performance in your embedded and industrial projects.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX5216PMB1?
You can click on the BUY or RFQ button to purchase MAX5216PMB1 from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX5216PMB1?
You can download the MAX5216PMB1 datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX5216PMB1?
MAXIM INTEGRATED / ANALOG DEVICES
