MAXIM INTEGRATED / ANALOG DEVICES MAX530BCWG 12-bit DAC

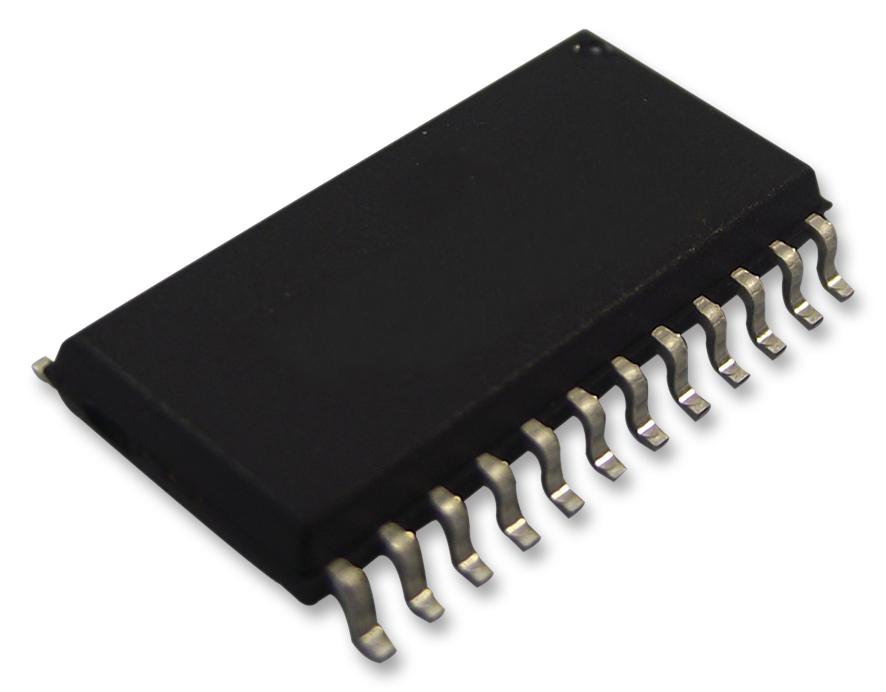

The MAX530BCWG+ is a low-power, 12-bit digital-to-analog converter (DAC) in a 24-pin WSOIC package, designed for single 5V or dual ±5V supply operation. It features an on-chip voltage reference and output buffer amplifier, with an operating current of only 250µA, making it suitable for portable and battery-powered applications. The DAC achieves 12-bit resolution through laser trimming of its components, requiring no further calibration. Internal gain setting resistors allow for output voltage ranges of 0V to +2.048V, 0V to +4.096V, or ±2.048V. It supports four-quadrant multiplication without external resistors or op-amps. The device includes double-buffered parallel logic inputs compatible with 4-bit, 8-bit, and 16-bit microprocessors. Key features include a supply voltage range of 4.5V to 5.5V, operating temperature of 0°C to 70°C, a maximum relative accuracy of ±1 LSB over temperature, monotonic behavior, power-on reset, and a shutdown mode with 40µA current. Applications include signal processing.
MAXIM INTEGRATED / ANALOG DEVICES MAX530BCWG 12-bit DAC Specifications:
- Resolution: 12 Bits
- Supply Voltage: 4.5V to 5.5V
- Operating Temperature: 0°C to 70°C
- Output Voltage Ranges: 0V to +2.048V, 0V to +4.096V, or ±2.048V
- Maximum Relative Accuracy: ±1 LSB over temperature
- Monotonic behavior guaranteed
- Power-On Reset
- Shutdown current: 40µA
- Reference: On-chip, laser-trimmed 2.048V
- Output Buffer: Op-amp buffered voltage output
- Double-buffered parallel logic inputs: compatible with 4, 8, 16-bit microprocessors
- Output load regulation: <±1LSB for 2kΩ load
- Output impedance: 0.2Ω
- Digital input voltage levels: compatible with TTL and CMOS, driven with rail-to-rail logic
- Reference input range: 0V to Vref, with an external reference option
- Reference ground: REFGND pin, connected to AGND when internal reference used
- Power consumption: approximately 250µA
Buy the Maxim Series MAX530 DAC: Low-Power 12-Bit Voltage-Output: MAX530BCWG
Enhance your signal processing setup with the Maxim series MAX530BCWG. This low-power, high-precision 12-bit DAC offers on-chip voltage reference, flexible output ranges, and support for microprocessor interface, all in a compact WSOIC package. Ideal for portable and battery-powered systems, it features a safe shutdown mode and guaranteed monotonic output for reliable performance. Easy to integrate with double-buffered parallel logic inputs compatible with 4, 8, and 16-bit microprocessors. Make your purchase online today and ensure your project benefits from top-tier accuracy and low power consumption.
Buy Maxim series MAX530BCWG low-power 12-bit DAC now and experience unmatched accuracy and efficiency for your signal processing and portable applications.
