MAXIM INTEGRATED / ANALOG DEVICES MAX5440EAG Digital Potentiometer
The MAX5440 is a dual logarithmic taper digital potentiometer with a 40kΩ resistance, designed for volume and balance control applications. It features 32 log-spaced tap points, buffered wiper outputs, and an integrated bias generator that eliminates external op-amps. The device offers a debounced rotary encoder interface, click-and-pop suppression, and five LED indicators for visual feedback on volume or balance levels. Power-efficient with low distortion, it provides modes for mute, volume, and balance control, suitable for stereo audio systems, multimedia devices, and set-top boxes, operating over -40°C to +85°C.
MAXIM INTEGRATED / ANALOG DEVICES MAX5440EAG Digital Potentiometer Specifications:
- Resistance: 40kΩ end-to-end
- Tap points: 32 log-spaced
- Temperature range: -40°C to +85°C
- Power supply: +2.7V to +5.5V
- Internal bias voltage generator
- Wiper buffer current: 3 mA
- Total harmonic distortion: 0.003%
- Channel isolation: 100 dB
- Mute attenuation: -90 dB (typ)
- Bandwidth: 100 kHz (-3 dB)
- End-to-end resistance tolerance: 0.25 dB
- Power-on reset to -12dB
- Click-and-pop suppression: 32ms timeout
- Operating current: 1.4 mA (active), 1.3 mA (standby)

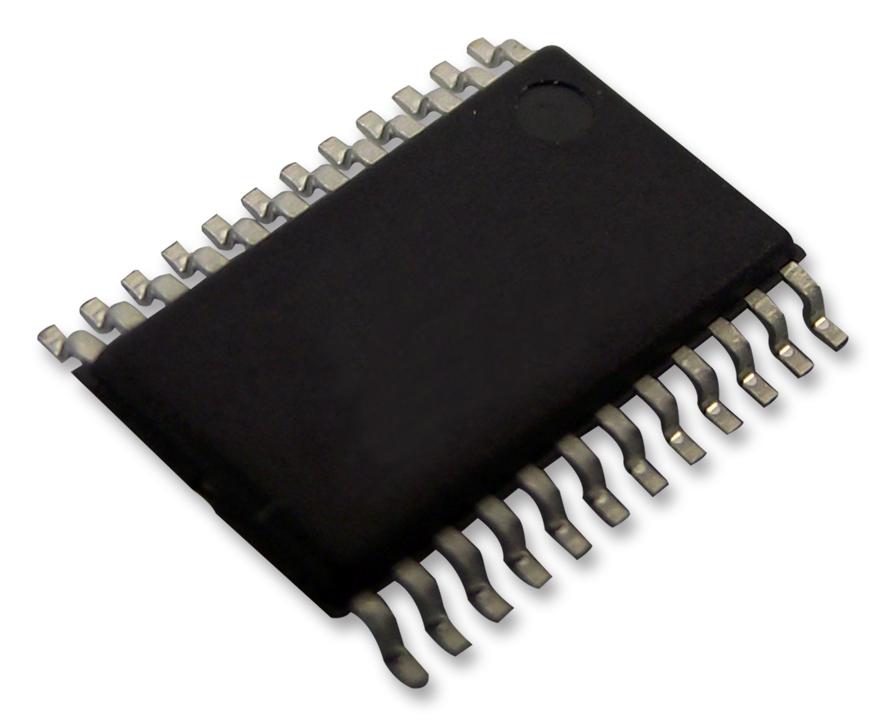

Buy the Maxim MAX5440 Series Audio Control: 40kΩ Logarithmic Digital Potentiometer
Purchase the MAX5440EAG online today for reliable stereo audio volume and balance control. Featuring 32 log-spaced tap points, integrated bias generator, and clickless switching, it ensures smooth operation with low distortion and minimal noise. Its dual-mode interface supports mute, volume, and balance modes, making it ideal for multimedia systems, set-top boxes, and desktop speakers. Compact and power-efficient, the MAX5440 offers high channel isolation, excellent linearity, and operation over -40°C to +85°C, ensuring longevity and performance in demanding audio applications.
Get Maxim MAX5440EAG today—built for precision, low distortion, and long-lasting durability in stereo volume and balance control applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX5440EAG?
You can click on the BUY or RFQ button to purchase MAX5440EAG from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX5440EAG?
You can download the MAX5440EAG datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX5440EAG?
MAXIM INTEGRATED / ANALOG DEVICES
