MAXIM INTEGRATED / ANALOG DEVICES MAX5971AETIT Power Sourcing Controller
The MAX5971AETI+T is a single-port, 40W Power Sourcing Equipment PSE controller compliant with IEEE 802.3af/at standards. It features an integrated 28-pin TQFN package with a built-in MOSFET for efficient power management. Designed for Ethernet switches, routers, wireless access points, and industrial automation, it supports PD discovery, classification, current limiting, and load disconnect functions. It can deliver up to 40W to high-power PDs, including Class 5 support, with features like input UVLO, overvoltage, overtemperature, and slew rate control. Operating voltage is 32V–60V, temperature -40°C to 85°C, with a 0.5Ω integrated MOSFET and sense resistor. Supply current is around 2.5mA, and it provides LED status indicators and supports AC/DC load removal detection.
MAXIM INTEGRATED / ANALOG DEVICES MAX5971AETIT Power Sourcing Controller Specifications:
- Package: 28-pin TQFN (5mm x 5mm)
- Operating Voltage Range: 32V to 60V
- Temperature Range: -40°C to 85°C
- Maximum Power Output: 40W
- Integrated Power MOSFET: 0.5Ω on-resistance
- Supply Current: approximately 2.5mA
- Input Undervoltage Lockout: 28.5V (typ)
- Overvoltage Protection: 62.5V (typ)
- Overtemperature Detection: 150°C (fault), 130°C (resets)
- Load Disconnection Detection: DC at 5–10mA, AC (via external circuitry)
- Detection & Classification: IEEE 802.3af/at, high power Class 5 support
- Detection Timing: ~80-90ms startup, classification in 19-23ms
- LED Indicators: Port status, faults, detection signals
- Safety & Reliability: Overcurrent, overvoltage, thermal shutdown features

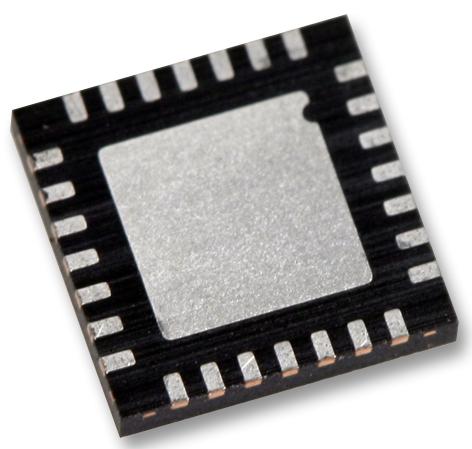

Buy the Maxim MAX5971A – Reliable Networking Power Controller for Industrial Applications
Order the Maxim MAX5971AETI+T now for reliable power management in industrial networking equipment. This 40W IEEE 802.3af/at compatible controller features an integrated MOSFET, load detection, classification capabilities, and comprehensive protection. Its compact 28-pin TQFN package ensures easy integration into switches, routers, and access points. Designed for high power PDs, including Class 5 support, it guarantees efficient power delivery coupled with thermal and overvoltage safety features. Purchase online to ensure your networking equipment operates with maximum efficiency and protection.
Get Maxim MAX5971AETI+T today—built for industrial networking and high-power PoE applications with efficient load management and robust protection features.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX5971AETIT?
You can click on the BUY or RFQ button to purchase MAX5971AETIT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX5971AETIT?
You can download the MAX5971AETIT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX5971AETIT?
MAXIM INTEGRATED / ANALOG DEVICES
