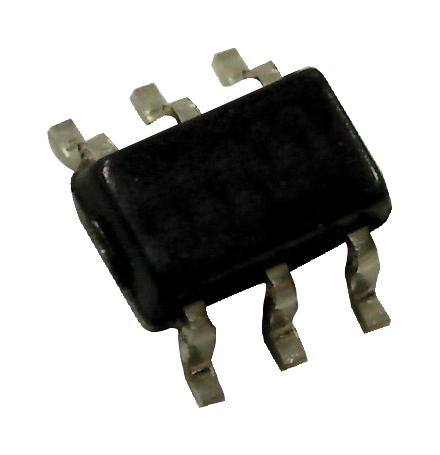

MAXIM INTEGRATED / ANALOG DEVICES MAX6324GUT29T Power Supervisor Circuit
The MAX6324GUT29T is a high-precision microprocessor supervisory circuit featuring a windowed watchdog timer with adjustable timeout periods and a manual reset input. It monitors power supply voltages from +2.5V to +5.0V, providing reliable power-on reset and brownout detection. The device ensures system safety by issuing a reset if Vcc drops below a preset threshold or if the watchdog detects timing faults. It includes open-drain and push-pull reset outputs, an open-drain watchdog pulse output, and guaranteed reset validity down to Vcc = +1.2V. Suitable for automotive, industrial, and embedded control applications, the MAX6324 ensures system integrity with minimal power consumption across extended temperature ranges.
MAXIM INTEGRATED / ANALOG DEVICES MAX6324GUT29T Power Supervisor Circuit Specifications:
- Supply Voltage Range: 1.2V to 5.5V
- Reset Threshold Voltage: 2.32V to 4.63V (selectable)
- Reset Delay: 100-280ms (adjustable)
- Watchdog Timeout Periods: 15ms to 1.3s (factory-trimmed, eight options)
- Watchdog Pulse Width: 1ms
- Output Type: Open-drain (WDPO), push-pull (RESET for MAX6323)
- Reset Valid Down to Vcc = +1.2V
- Operating Temperature Range: -40°C to +125°C
- Package: 6-pin SOT23
- Typical Power Consumption: Low power, approximately 23µA at 3V
- Manual Reset Input: Debounced, active low, minimum pulse width 1µs
- Glitch Immunity: 100ns for WDI and MR inputs
- Gradual Vcc monitoring with glitch immunity and transient suppression
