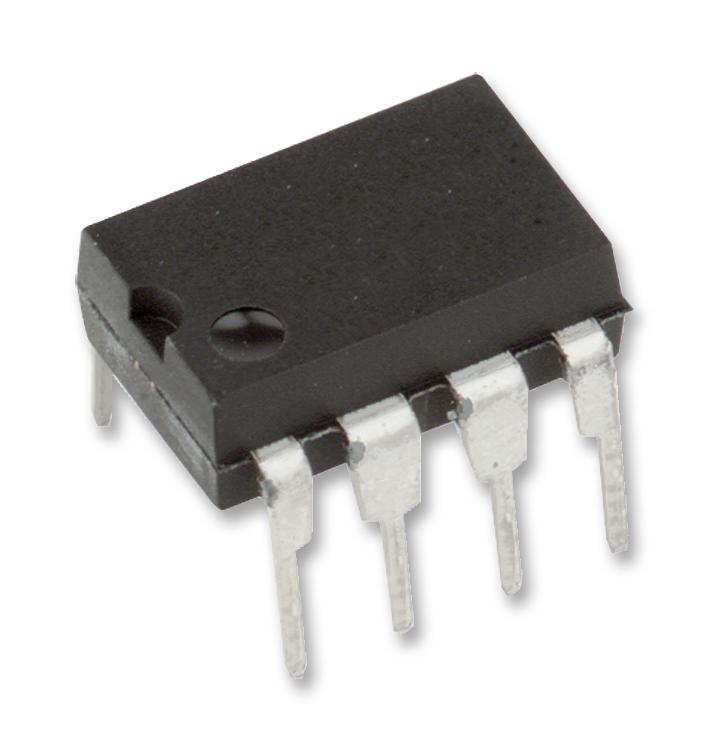

MAXIM INTEGRATED / ANALOG DEVICES MAX664EPA Voltage Regulator
The MAX664EPA is a high-performance, dual-mode 5V/programmable micropower voltage regulator designed for battery-powered systems, LCD displays, and low power applications. Featuring low quiescent current of 124A, it offers fixed or adjustable output voltage from 1.3V to 16V through external resistors, with a typical operating voltage range of 2 to 16.5V. It includes current limiting, low battery detection, temperature-proportional outputs, and low noise, ensuring reliable regulation, high efficiency, and enhanced system stability in portable and embedded electronics.
MAXIM INTEGRATED / ANALOG DEVICES MAX664EPA Voltage Regulator Specifications:
- Input Voltage Range: 2V to 16.5V
- Output Voltage: Fixed +5V or Adjustable 1.3V to 16V
- Quiescent Current: 124A (max)
- Output Current Capability: 40mA
- Dropout Voltage: 1V at 40mA
- Line Regulation: 0.03 to 0.38 W/V (depending on conditions)
- Load Regulation: 5mA to 20mA, 10 to 50mA (varies with model)
- Reference Voltage: 1.33V (typical)
- Temperature Range: -40°C to +85°C
- Low Battery Threshold: Adjustable via resistive divider
- Current Limit: Set by external resistor Re
- Efficiency: High at low load currents
- Protection: Current limiting and thermal management
- Features: Low noise, temperature compensation, shutdown input
Buy the Buy MAXIM MAX664EPA Dual Mode 5V/Programmable Voltage Regulator Online
Enhance your electronic projects with the MAXIM MAX664EPA dual-mode 5V/programmable voltage regulator. Designed for efficient power management, it features low quiescent current, adjustable output voltage from 1.3V to 16V, and superior low noise performance. This compact device is ideal for battery-powered devices, LCD display systems, and telemetry equipment. With built-in current limiting, low battery detection, and thermal protection, the MAX664EPA ensures long-lasting durability, system stability, and optimal voltage regulation in various low power applications. Order online today for fast delivery and reliable performance.
Get MAXIM MAX664EPA today—built for precise regulation, low power consumption, and reliable performance in portable and embedded systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX664EPA?
You can click on the BUY or RFQ button to purchase MAX664EPA from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX664EPA?
You can download the MAX664EPA datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX664EPA?
MAXIM INTEGRATED / ANALOG DEVICES
