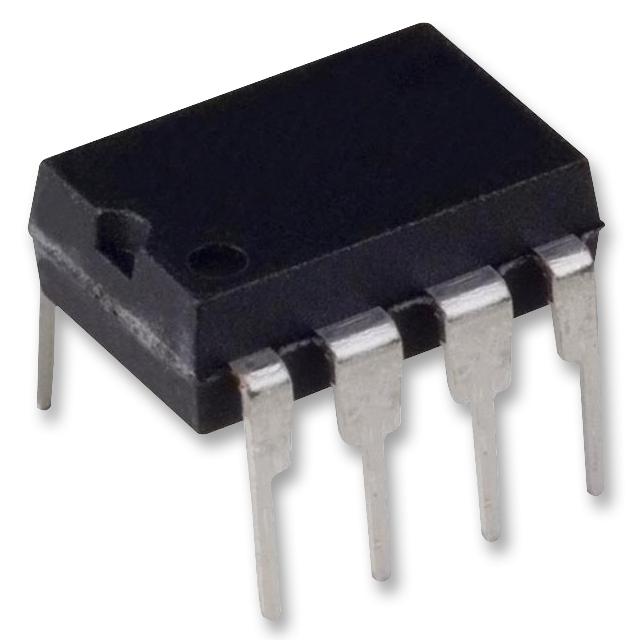

MAXIM INTEGRATED / ANALOG DEVICES MAX667EPA Low Dropout Voltage Regulator

The MAX667EPA+ is a 5V programmable low dropout voltage regulator housed in an 8-pin DIP package. It provides up to 250mA of output current with a typical quiescent current of 20µA when no load is present. The regulator features a low voltage detector to indicate power failures, and early-warning and low-dropout detectors to signal imminent loss of regulation. It includes a shutdown mode that disables the output and reduces quiescent current. The MAX667EPA+ operates in dual mode: one mode internally trims feedback resistors for a fixed 5V output, while the other allows adjustable output from 1.3V to 16V using external resistors. It is pin-compatible with the MAX666 and ideal for power management in portable devices.

View MAX667EPADatasheet [pdf]

Buy the Buy MAXIM MAX667EPA+ Low-Dropout Voltage Regulator Part Number MAX667EPA Online

Order the MAXIM MAX667EPA+ low dropout voltage regulator online today and enhance your portable device's power efficiency. With a compact 8-pin DIP package, it delivers up to 250mA of current, features adjustable output voltage from 1.3V to 16V, and includes power-failure detection for reliable operation. Its ultra-low quiescent current of 20µA ensures minimal battery drain, making it ideal for battery-powered systems. Quickly set the output voltage with external resistors and enjoy enhanced performance in power management applications designed for portable electronics and compact systems.

Buy MAXIM MAX667EPA+ low dropout regulator now and ensure reliable power with adjustable output and low quiescent currents for portable and battery-powered devices.
