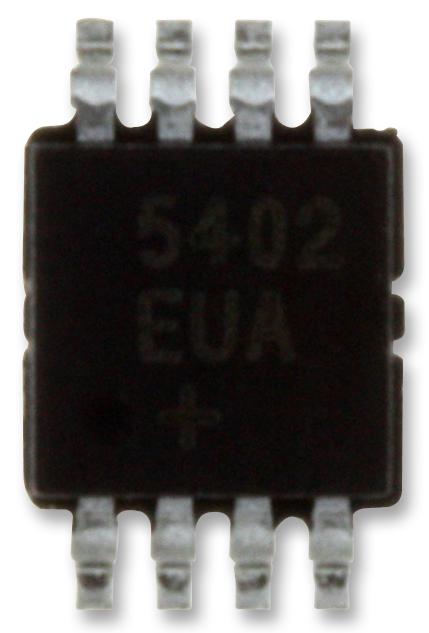

MAXIM INTEGRATED / ANALOG DEVICES MAX6686AU75L Temperature Switch
The MAX6686AU75L is a dual-output remote-junction temperature switch designed for precise temperature monitoring of ICs, CPUs, and multichip modules. It features an external diode-connected transistor sensing element and dual outputs: an open-drain, active-low THigh and an open-drain, active-low TLow. The device offers programmable lower thresholds from +75°C to +115°C and preset upper thresholds at +125°C, with a typical hysteresis of 5°C. Its compact 8-pin UMAX package ensures space-efficient integration into various systems, delivering automatic temperature shutdown signals and protection capabilities for critical electronics components.
MAXIM INTEGRATED / ANALOG DEVICES MAX6686AU75L Temperature Switch Specifications:
- Supply Voltage Range: 3.0V to 5.5V
- Power Dissipation: 330mW at Ta = +70°C
- Temperature Threshold Accuracy: ±1.5°C
- Lower Threshold Range: +75°C to +115°C in 5°C increments
- Upper Threshold: +120°C or +125°C (preset)
- Hysteresis: Approximately 5°C
- Outputs: Open-drain, active-low for THigh; Open-drain, active-low or push-pull, active-high for TLow
- Pin Package: 8-pin UMAX, space-saving design
- External Diode Capacitance: 2200pF recommended
- Operating Temperature Range: -40°C to +125°C
- Pin Configuration: Power, Ground, sensing, output, threshold select inputs
