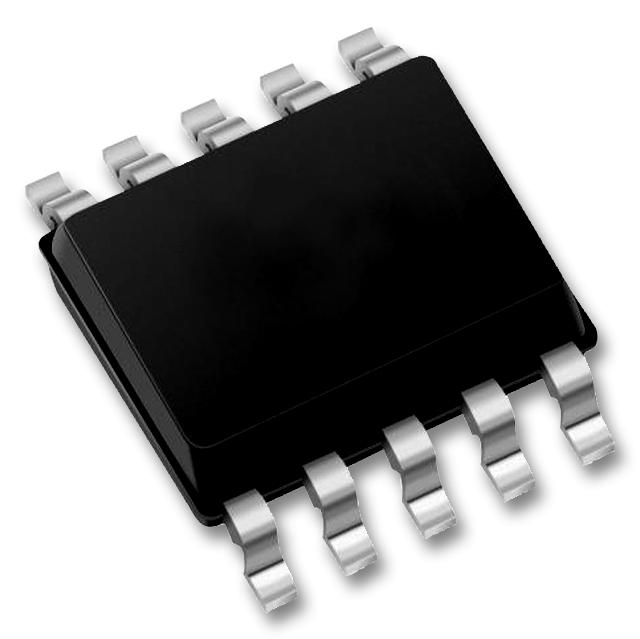

MAXIM INTEGRATED / ANALOG DEVICES MAX6714AUBT Quad Voltage Monitor
The MAX6714AUBT is a low-power, quad voltage monitor with high accuracy, providing multiple threshold options for systems requiring monitoring of power supplies. It offers three power-fail comparators, a manual reset input, and an active-low reset output with integrated timing. Designed for multivoltage systems, it features internal circuitry that prevents external component needs, making it ideal for telecommunications, computers, printers, and networking equipment. Operating from 2.0V to 5.5V, the device ensures reliable performance across -40°C to +85°C temperature range with minimal supply current consumption.
MAXIM INTEGRATED / ANALOG DEVICES MAX6714AUBT Quad Voltage Monitor Specifications:
- Supply Voltage Range: 2.0V to 5.5V
- Reset Threshold: Vcc decreasing, typically 3.00V (-5%) to 3.15V (-10%)
- Power-Fail Inputs: three with adjustable thresholds (~0.62V reference)
- Output Type: active-low, open-drain with internal 10μA pullups
- Reset Timeout Period: 140ms minimum, up to 280ms
- Manual Reset Input (MR): active-low, internally pulled-up to Vcc
- Operating Temperature Range: -40°C to +85°C
- Power Consumption: approximately 60nA at 3V
- Package: 10-pin uMAX
- Designed for multivoltage systems, system supervisory, and reset applications.
Buy the Maxim MAX6714AUBT – Reliable Voltage Monitoring for Industrial Applications
Ensure your systems operate smoothly with the Maxim MAX6714AUBT quad voltage monitor. Featuring high accuracy thresholds, manual reset, and low power consumption, it is ideal for telecommunications, computers, and networking. Its robust design operates from 2.0V to 5.5V, providing reliable supervision of multiple power supplies. Easy to interface with internal open-drain outputs compatible with various logic levels. Secure your system’s stability today by ordering this essential voltage monitoring device online for fast delivery and optimal system performance.
Buy Maxim MAX6714AUBT now and experience unmatched reliability and precise voltage monitoring for your critical systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX6714AUBT?
You can click on the BUY or RFQ button to purchase MAX6714AUBT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX6714AUBT?
You can download the MAX6714AUBT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX6714AUBT?
MAXIM INTEGRATED / ANALOG DEVICES
