MAXIM INTEGRATED / ANALOG DEVICES DS1804100 Digital Resistance Module
The DS1804 is a nonvolatile digital potentiometer with 100 positions, suitable for low-cost trimming applications in industrial and automation settings. It features EEPROM memory for wiper position storage, operates from 3V or 5V supplies, and includes an increment/decrement interface controlled by chip select and control pins. Available in DIP, SOIC, and WSON packages, it provides reliable resistance control with high linearity and minimal external circuitry. Its operational temperature range extends from -40°C to +85°C, making it ideal for portable and industrial applications where precise resistance adjustment is required.
MAXIM INTEGRATED / ANALOG DEVICES DS1804100 Digital Resistance Module Specifications:
- Resistance Values: 10kΩ, 50kΩ, 100kΩ
- Operating Voltage: 3V to 5.5V
- Temperature Range: -40°C to +85°C
- Number of Positions: 100
- Supply Current: 400μA (max)
- Wiper Resistance: 400Ω to 1000Ω
- Wiper Load Time: 500μs
- Power-Up Load Time: 50ms
- Programming Cycles: 50,000 EEPROM write cycles
- Package Options: DIP 8-pin (300 mils), SOIC 8-pin (150 mils), WSON 8-pin (118 mils)
- Absolute Linearity: +0.6 LSB
- Relative Linearity: +0.25 LSB
- Bandwidth: Up to 1 MHz for some models
- Capacitance: Input 5 pF, Output 7 pF
- Max Voltage on Pins: Vcc + 0.3V, GND - 0.3V

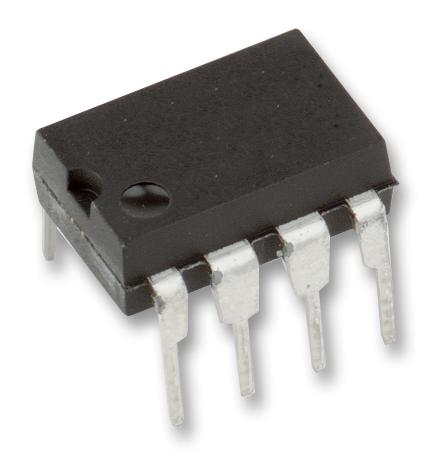

Buy the Maxim DS1804 – Reliable Digital Potentiometer for Industrial Applications
Order the Maxim DS1804 digital resistance module online today to enjoy dependable performance in trimming and signal processing. Designed for industrial and portable applications, this nonvolatile potentiometer offers 100 positions, EEPROM memory for storage, and operation from 3V to 5V power supplies. Its various packages ensure compatibility with your design. With proven linearity, high reliability, and ease of integration, the DS1804 guarantees consistent, precise resistance adjustments in demanding environments. Get yours now for efficient signal processing and calibration tasks.
Buy Maxim DS1804 now and experience unmatched reliability and precision in digital resistance control for manufacturing and automation systems.
