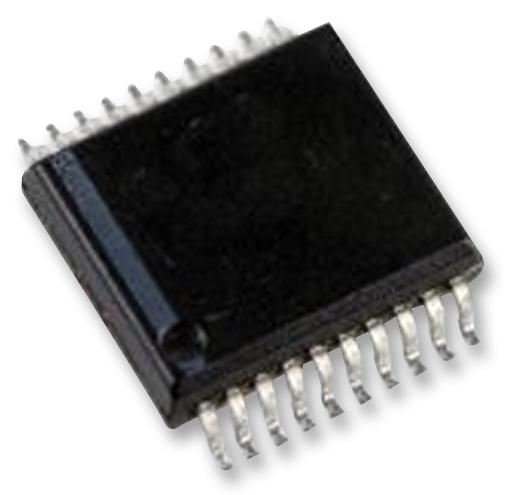

MAXIM INTEGRATED / ANALOG DEVICES MAX6818EAPT Switch Debouncer

The MAX6818EAP+T from Maxim Integrated Products is a robust, ESD-protected octal CMOS switch debouncer in a 20-pin SSOP package. It effectively interfaces mechanical switches to digital systems by removing bouncing signals, providing a clean digital output after a short qualification delay. The device handles switch bounce for both opening and closing, with inputs capable of tolerating voltage levels up to ±25V and ESD protection levels of ±15KV human body model, suitable for harsh industrial environments. It operates with a single supply voltage ranging from +2.7V to +5.5V and includes undervoltage lockout circuitry to ensure correct output states upon power-up. The MAX6818 incorporates three state outputs controlled by an active-low enable pin, and features a switch change of state output (active-low CH) for easy microprocessor polling and interrupt handling. Its applications include microprocessor switch interfacing, industrial and portable instruments, PC-based systems, and membrane keypads. Key features include simplified system interface without external components, low supply current (6µA), 40ms debounce duration, built-in protection circuitry, and broad operating temperature from -40°C to +125°C. The device is pin-compatible with the LS573 octal latch (excluding the CH pin). Note that market demand has extended lead times, and delivery may fluctuate, with no discounts available.

View MAX6818EAPTDatasheet [pdf]

Buy the Maxim MAX6818 – Reliable Switch Debouncer for Industrial Applications

Enhance your electronic systems with the MAX6818 CMOS switch debouncer, offering robust ESD protection, precise debounce timing, and easy microprocessor integration. Its broad voltage range and low power consumption make it ideal for industrial, portable, and embedded applications. Designed to eliminate switch bounce for clean signals, it simplifies system design by requiring no external components. With a wide operating temperature and built-in protection features, the MAX6818 ensures durability and reliability in harsh environments. Purchase online today to upgrade your control and interface projects with this advanced debouncing solution.

Order your Maxim MAX6818 octal switch debouncer today and ensure reliable, noise-free switch interfacing in industrial, portable, and PC-based systems.
