MAXIM INTEGRATED / ANALOG DEVICES MAX691ACWE Microprocessor Monitor
The MAX691ACWE is a comprehensive monitoring and control device designed for use in computers, workstations, servers, and controllers. It features critical microprocessor monitoring capabilities and supports intelligent instrument integrations for enhanced system management. This device provides power-fail detection, reset generation, watchdog timer functions, and chip-enable gating to prevent data corruption, ensuring system reliability and stability. Its versatile package options include Tiny Shrink Small Outline Package (TSSOP), making it suitable for space-constrained applications while delivering high performance and low power consumption for critical system oversight.
MAXIM INTEGRATED / ANALOG DEVICES MAX691ACWE Microprocessor Monitor Specifications:
- Supply Voltage Range: 4.75V to 5.5V
- Reset Threshold Voltage: 4.65V typical, hysteresis 15mV
- Reset Active Timeout: 200ms typical after power-up
- Watchdog Timeout Period: 1.6 seconds (nominal)
- Power-Fail Input Threshold: 1.25V typical
- Chip-Enable Propagation Delay: 6-10 ns (max)
- Output Supply Voltage (Vout): connects to Vcc or VBATT in backup
- Input Voltage (Vcc): regulated 5V input
- Standby Current: 30μA, Operating Current: 30μA
- Package Options: 16-pin TSSOP, lead-free available
- Operating Temperature: -40°C to +85°C
- Ground Reference: GND
- Power-Fail and Reset Functions: active high and low outputs with open-drain configurations
- Gate control for chip-enable signals to prevent data corruption
- Low power consumption and high reliability for embedded system monitoring

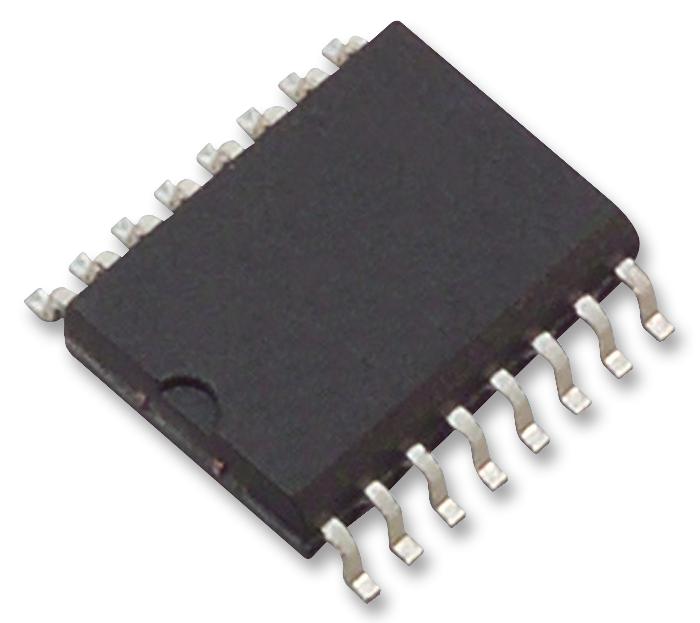

Buy the Buy Maxim Integrated MAX691ACWE Microprocessor Monitor Part Number MAX691ACWE Online
Order the MAX691ACWE microprocessor supervisory device online today for robust system management. This compact monitor includes critical features such as reset, watchdog timer, power-fail detection, and chip-enable gating, all designed to ensure your embedded systems operate reliably. Its low power consumption, operating over -40°C to +85°C, makes it ideal for servers, controllers, and industrial automation. Experience hassle-free integration with a 16-pin TSSOP package, trusted performance, and quick delivery directly from authorized distributors. Keep your systems protected and operational with MAX691ACWE.
Get Maxim Integrated MAX691ACWE today—built for high-precision microprocessor monitoring, reliable resets, and system protection in compact form factors.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX691ACWE?
You can click on the BUY or RFQ button to purchase MAX691ACWE from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX691ACWE?
You can download the MAX691ACWE datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX691ACWE?
MAXIM INTEGRATED / ANALOG DEVICES
