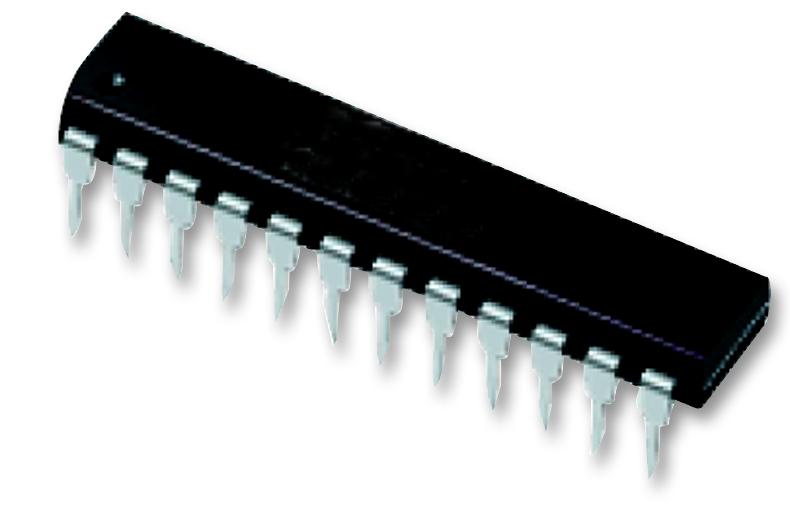

MAXIM INTEGRATED / ANALOG DEVICES MAX190BCNG 12-bit analog-to-digital converter
The MAX190BCNG+ is a low-power 12-bit successive approximation ADC featuring differential inputs, internal reference, and track/hold circuitry, suitable for battery-powered data logging and high-accuracy systems. It operates from a single +5V supply, offers versatile interface modes including SPI, QSPI, and Microwire, and supports internal or external clock sources. With a fast 76 kSPS sampling rate, low offset and gain errors, and a power-down mode reducing current to 50 µA, it ensures reliable, high-precision measurements in industrial automation, telecommunication, and measurement applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX190BCNG 12-bit analog-to-digital converter Specifications:
- Resolution: 12 Bits
- Operating Supply Voltage: +5V (range 4.75V to 5.25V)
- Power Consumption: Max 50 µA in power-down mode
- Sampling Rate: 76 kSPS (MAX190), 100 kSPS (MAX191)
- Interface Modes: Two 8-bit parallel modes, serial SPI, QSPI, Microwire standards
- Input Voltage Range: 0V to VREF (internal 4.096V or external reference)
- Input Impedance: High-Z input with internal track/hold
- Conversion Time: 12.5 µs
- Temperature Range: 0°C to 70°C (listed models)
- Offset Error: Typically ±1LSB, maximum ±2LSB
- Gain Error: Typically 1%, adjustable via external components
- Low Total Harmonic Distortion and Good Power Supply Rejection
- Internal bandwidth: Approximately 2 MHz
- Minimum external decoupling components required
Buy the Maxim Integrated MAX190– Reliable 12-Bit ADC for Industrial Applications
Experience the high accuracy and low power consumption of the MAX190BCNG+ ADC by ordering online today. Designed for battery-powered data logging, industrial automation, and high-speed measurement systems, this 12-bit ADC features internal reference calibration, differential inputs, and versatile interface options including SPI, QSPI, and Microwire. Its fast 76 kSPS sampling rate and minimal external components make it ideal for precise, reliable data acquisition. Elevate your projects with this high-performance, low-energy device—order now for fast delivery and seamless integration.
Get Maxim MAX190 today—built for high-precision measurements with internal reference and ultra-low power consumption.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX190BCNG?
You can click on the BUY or RFQ button to purchase MAX190BCNG from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX190BCNG?
You can download the MAX190BCNG datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX190BCNG?
MAXIM INTEGRATED / ANALOG DEVICES
