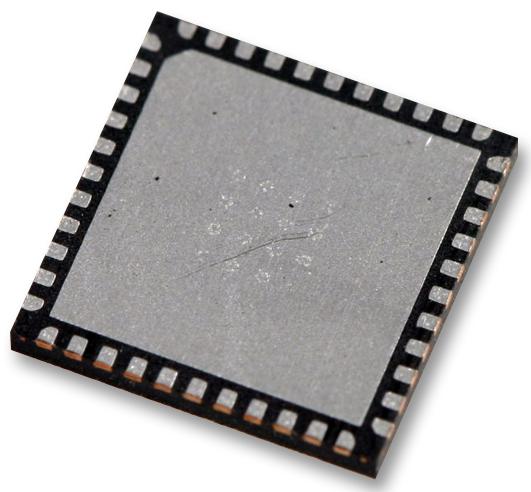

MAXIM INTEGRATED / ANALOG DEVICES MAX6960ATH LED Matrix Driver
The MAX6960ATH+ is a compact 44-pin TQFN LED driver optimized for 8x8 matrix displays. It interfaces via a high-speed 4-wire serial connection, enabling control of monocolor or RGB LED matrices with built-in open/short LED detection, segment current calibration, and 256-step brightness adjustment. Suitable for indoor signage, message boards, and industrial lighting, it operates from 2.7V to 3.6V over -40°C to 125°C. Its features include burst mode, multiple device synchronization, and support for high-speed communication, ensuring uniform brightness and color consistency across large LED panels.
MAXIM INTEGRATED / ANALOG DEVICES MAX6960ATH LED Matrix Driver Specifications:
- Package: 44-pin TQFN with exposed pad
- Voltage Range: 2.7V to 3.6V
- Operation Temperature: -40°C to 125°C
- Maximum Supply Current: 10 mA (no display load)
- Peak Segment Current: 20mA (standard) or 40mA (fixed)
- Serial Interface Speed: Up to 20MHz
- Display Memory: 64 bytes with 4 planes (1-bit) or 2 planes (2-bit)
- Pixel Brightness Control: 256-step PWM, 4 intensity levels per pixel
- LED Fault Detection: Open/short circuit detection built-in
- Control Features: Global commands, auto or manual plane switching, ripple sync, mux flip
- Application: Indoor signage, message boards, industrial controls, portable devices
Buy the Maxim Series MAX6960 LED Driver: MAX6960ATH
Order the Maxim MAX6960 Ath+ LED driver online today and experience reliable, precise control for high-quality LED matrix displays. Compatible with monocolor and RGB panels, it offers 256-step brightness, fault detection, and high-speed communication. Its versatile features make it perfect for indoor signage, message boards, industrial lighting, and portable applications. Benefit from easy integration, robust performance across -40°C to 125°C, and support for external transistors for higher currents. Purchase now to ensure your LED projects are efficient, consistent, and designed for durability.
Get Maxim MAX6960ATH today—built for precision, high-current control, and long-lasting durability in LED matrix displays.
