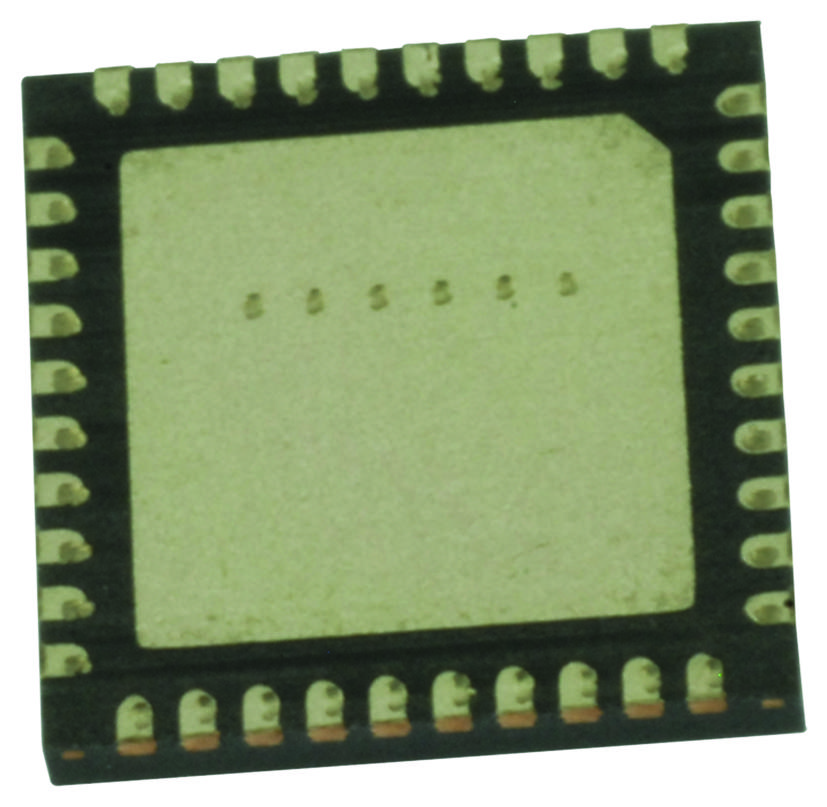

MAXIM INTEGRATED / ANALOG DEVICES MAX7300ATL I/O Expander
The MAX7300ATL+ is a 28-port I/O expander in a 40-pin TQFN package. It offers configurable logic inputs with internal pull-up or push-pull outputs, each capable of sinking 10mA and sourcing 4.5mA. Seven ports feature transition detection for interrupts on state changes. Operating voltage ranges from 2.5V to 5.5V, with a 400Kbps I2C-compatible serial interface and up to 16 address options. Ideal for industrial controllers, system monitoring, and communication applications requiring flexible, high-speed I/O expansion.
MAXIM INTEGRATED / ANALOG DEVICES MAX7300ATL I/O Expander Specifications:
- Package Type: 40-pin TQFN
- Ports: 28 configurable I/O ports
- Port Configurations: Logic input with optional pull-up or push-pull output
- Output Sinking Current: 10mA
- Output Sourcing Current: 4.5mA
- Transition Detection: 7 ports with configurable detection and interrupt generation
- Operating Voltage: 2.5V to 5.5V
- Serial Interface: 400kbps I2C-compatible
- Address Options: 16 addresses with only 2 select pins
- Temperature Range: -40°C to +125°C
- Power Consumption: Low quiescent current with shutdown options
Buy the Buy MAXIM MAX7300ATL 28-Port I/O Expander Part Number MAX7300ATL Online
Upgrade your industrial control or communication system with the MAX7300ATL 28-port I/O expander. Featuring configurable inputs and outputs, transition detection, and support for 16 I2C addresses, this compact device enhances your system's flexibility and responsiveness. Operating over a wide voltage range of 2.5V to 5.5V, it ensures seamless integration and low power consumption. Perfect for applications requiring reliable high-speed data handling, it simplifies expansion while maintaining excellent performance and durability.
Buy MAXIM MAX7300ATL now and experience reliable high-speed I/O expansion with transition detection for industrial and communication systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX7300ATL?
You can click on the BUY or RFQ button to purchase MAX7300ATL from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX7300ATL?
You can download the MAX7300ATL datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX7300ATL?
MAXIM INTEGRATED / ANALOG DEVICES
