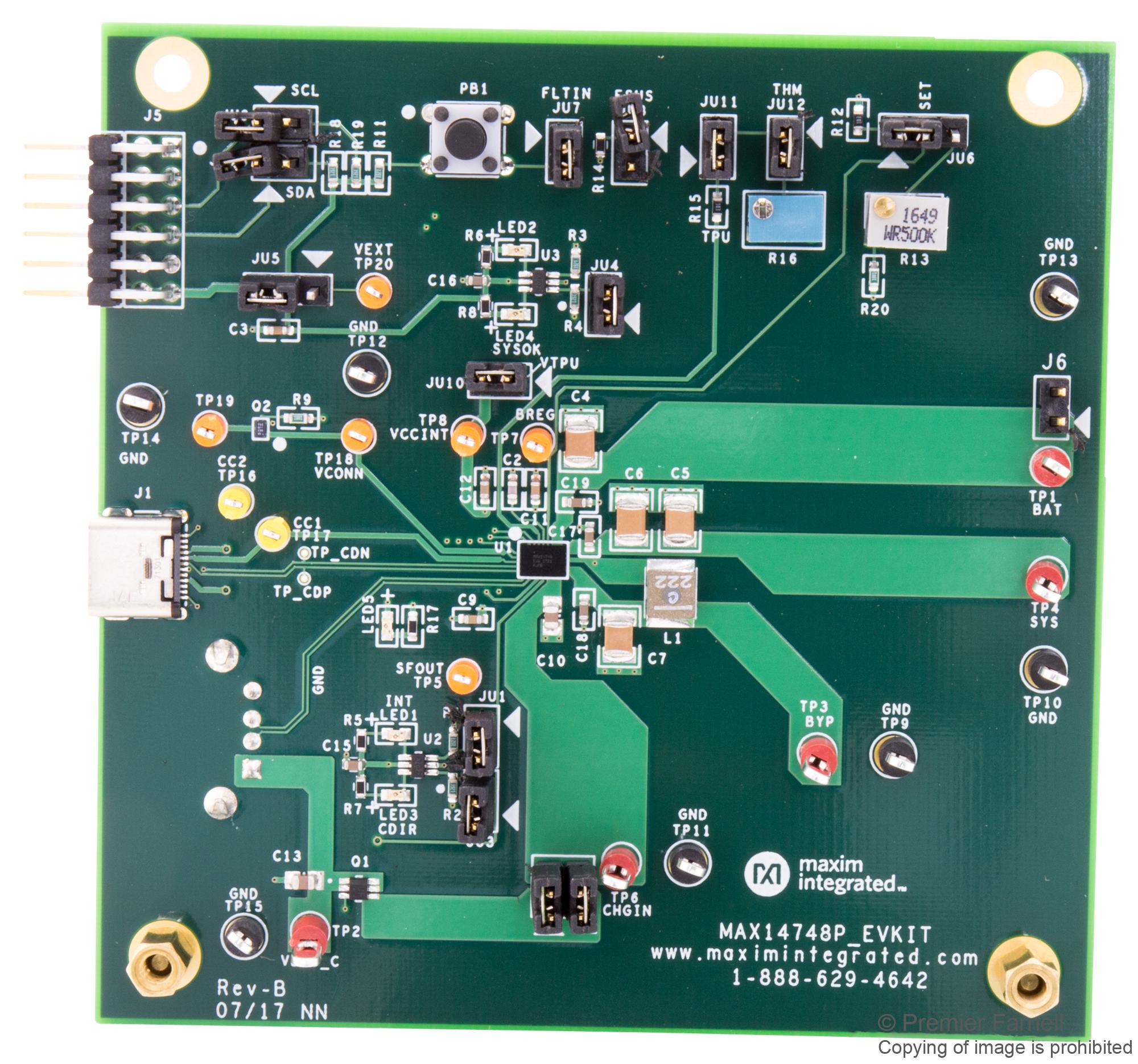

MAXIM INTEGRATED / ANALOG DEVICES MAX14748EVKIT USB Charger Evaluation Kit
The MAX14748 evaluation kit from Maxim Integrated is a pre-assembled, tested circuit designed to evaluate the MAX14748 USB Type-C charger IC. It features a proven PCB layout and an I2C serial interface, making it suitable for applications like digital cameras, barcode scanners, and wireless audio devices. The kit includes selectable jumpers for configuration, USB Type-C and Type-A connectors for easy integration, and comprehensive hardware to facilitate testing and development of USB Type-C charging solutions. Ideal for engineers seeking a reliable testing platform for USB power management systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX14748EVKIT USB Charger Evaluation Kit Specifications:
- Fully assembled and tested evaluation board
- Proven PCB layout for reliable performance
- Includes Type-C and Type-A USB connectors
- Supports 12 Mbps USB 2.0 full-speed interface
- Provides I2C serial interface for communication
- Configurable jumpers for device setup
- VMC 3.3V digital supply for I/O operations
- Includes external load switch control circuitry
- RoHS compliant design
- Dimensions compatible with standard development boards
- Jumpers enable configuration of indicators, power paths, and signal connections
- Operating temperature supported from -40°C to +125°C
- Interfaced with power source via VBUS_C at USB Type-C connector
- Designed for easy integration into testing environments
- Includes detailed hardware schematics and user guides
- Supports applications like digital imaging, barcode scanning, and wireless speakers
Buy the Maxim Series EV Kit MAX14748: USB Type-C Charger Evaluation
Purchase the Maxim Series MAX14748 evaluation kit online today to simplify your USB Type-C power management development. This fully assembled and tested kit offers a proven PCB layout, configurable jumpers, and comprehensive hardware for seamless integration into your testing environment. Ideal for digital imaging devices, barcode scanners, and wireless audio products, this kit provides a reliable platform for evaluating and developing USB Type-C charging solutions. Enjoy fast delivery and support as you accelerate your project timeline with ease.
Order your Maxim Series MAX14748 evaluation kit today and enhance your USB Type-C charger development with a reliable, fully assembled testing platform.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX14748EVKIT?
You can click on the BUY or RFQ button to purchase MAX14748EVKIT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX14748EVKIT?
You can download the MAX14748EVKIT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX14748EVKIT?
MAXIM INTEGRATED / ANALOG DEVICES
