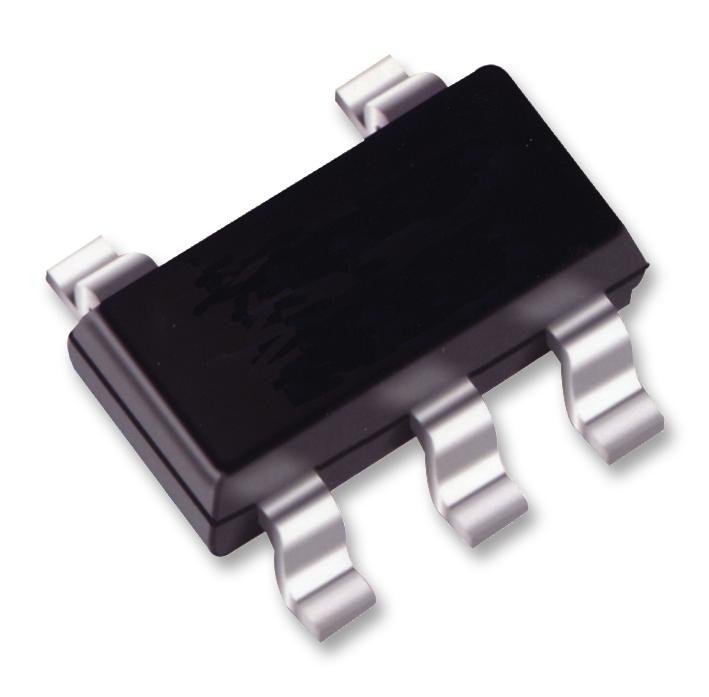

MAXIM INTEGRATED / ANALOG DEVICES MAX4503EUKT Analog Switch
The MAX4503EUK+T is a low-voltage, dual-supply CMOS analog switch designed for a variety of signal routing applications. It features a single-pole single-throw (SPST) configuration with normally open (NO). Operating seamlessly from ±1V to ±6V, it handles rail-to-rail signals while maintaining an off leakage current as low as 1nA at 25°C. Its architecture allows CMOS logic compatibility at ±5V supplies without a ground pin. Designed for battery-operated systems, audio/video routing, and data acquisition, it offers fast switching speeds (t_ON = 150ns, t_OFF = 100ns at 25°C), low ON-resistance (max 400Ω at 25°C with ±3V), and excellent off isolation (-90dB at 100kHz). Its wide temperature range (–40°C to 85°C) ensures reliable performance in low-voltage, compact applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX4503EUKT Analog Switch Specifications:
- Supply Voltage Range: ±1V to ±6V
- Analog Signal Range: 0V to V+ or V-
- On-Resistance: Max 400Ω at 25°C with ±3V supplies
- Off Leakage Current: 1nA at 25°C, 10nA at 85°C
- Charge Injection: 10pC Max
- Switching Times: t_ON = 150ns, t_OFF = 100ns at 25°C
- Operating Temperature Range: -40°C to 85°C
- Package Type: 5-pin SOT-23
- Switch Configuration: Normally Open (NO)
- Maximum Power Dissipation (TA = +70°C): 571mW
- Input Compatibility: CMOS logic at ±5V
- No ground pin required for operation
- Reverse-ESD diode protection between signal pins and supplies
- Applications include battery-powered equipment, signal routing, low-voltage data systems, PCDMCIA cards, modems
Buy the Maxim MAX4503EUKT – Reliable CMOS Analog Switch for Industrial Applications
Purchase the Maxim MAX4503EUKT online today—experience efficient low-voltage operation, fast switching speeds, and minimal leakage currents. Designed for battery-powered devices, audio/video routing, and compact data systems, this CMOS analog switch offers exceptional reliability with a wide operating temperature range from -40°C to 85°C. Its unique architecture eliminates the need for a ground pin, simplifying integration into various applications. With a guaranteed maximum on-resistance of 400Ω at 25°C with ±3V supplies and a charge injection of just 10pC, it ensures high-performance signal switching with minimal interference. Order now for dependable, high-quality signal routing in your industrial, consumer, or communication systems.
Get Maxim MAX4503EUKT today—built for precision, low power consumption, and long-lasting durability in your signal routing projects.
