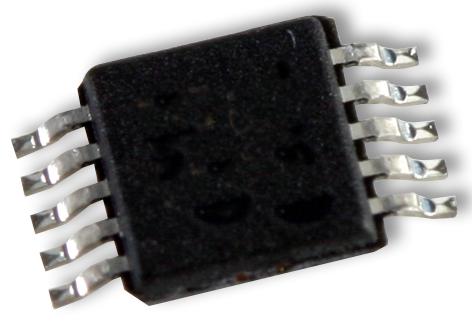

MAXIM INTEGRATED / ANALOG DEVICES MAX8516EUB Low Dropout Regulator
The MAX8516EUB+ is a high-performance, low-dropout linear regulator operating from 1.425V to 3.6V input, delivering up to 1A with a dropout voltage of only 0.2V. It features adjustable output from 0.5V to near Vin minus 0.2V, with ±1.4% accuracy across load, line, and temperature. Equipped with a 1µF input and 4.7µF output ceramic capacitors, it offers excellent transient response, limiting voltage deviation to 45mV during load steps. Additional features include low quiescent current of 320µA, soft-start, short circuit, thermal protection, and shutdown, making it ideal for power regulation in portable and industrial applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX8516EUB Low Dropout Regulator Specifications:
- Input Voltage Range: 1.425V to 3.6V
- Output Voltage: 0.5V to nearly Vin minus 0.2V, adjustable
- Output Current: Up to 1A
- Dropout Voltage: 0.2V at 1A
- Output Accuracy: ±1.4%
- Capacitors: 1µF ceramic input, 4.7µF ceramic output
- Transient Response: voltage deviation limited to 45mV from 20mA to 1A load
- Quiescent Current: 320µA
- Shutdown Current: <25µA
- Protection: Short-circuit, thermal overload, soft-start
- Package: 10-pin uMAX with exposed pad for heat dissipation
- Application: Portable devices, servers, networking, NB, PDAs, test equipment
Buy the Maxim MAX8516EUB – Reliable Low-Dropout Regulator for Industrial Applications
Enhance your power regulation with the Maxim MAX8516EUB, a highly efficient low-dropout regulator capable of providing up to 1A output current from input voltages as low as 1.425V. Its adjustable output from 0.5V up to nearly the input voltage ensures flexible integration into various electronic systems. Featuring excellent transient response, a low dropout voltage of 0.2V, and built-in overcurrent and thermal protections, this regulator is ideal for portable, industrial, and server applications. Easy to implement with ceramic capacitors and compact in size, it significantly improves power stability and performance in demanding environments.
Buy Maxim MAX8516EUB now and experience unmatched reliability and high efficiency in your power management solutions.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX8516EUB?
You can click on the BUY or RFQ button to purchase MAX8516EUB from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX8516EUB?
You can download the MAX8516EUB datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX8516EUB?
MAXIM INTEGRATED / ANALOG DEVICES
