MAXIM INTEGRATED / ANALOG DEVICES MAX8627ETDT Boost Converter Module
The MAX8627ETD+T is a low-voltage boost converter featuring a quiescent current of just 20µA, operating at 1MHz with True Shutdown functionality in a compact 14-pin TDFN package. This high-efficiency device can boost voltage from 3V to 5V, sourced from 2-cell NiMH/NiCd or single-cell Li+/Li polymer batteries, delivering up to 1A of output current. It includes internal soft-start limiting inrush current to 500mA, PWM mode for low noise, internal compensation, and adjustable current limit, making it ideal for portable, microprocessor, backup power, and consumer electronic applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX8627ETDT Boost Converter Module Specifications:
- Input Voltage Range: 2.7V to 5.6V
- Output Voltage: 3V to 5V (adjustable)
- Output Current: Up to 1A
- Quiescent Current: 20µA (typ)
- Switching Frequency: 1MHz
- Efficiency: Up to 95%
- Soft-Start Current Limit: 500mA

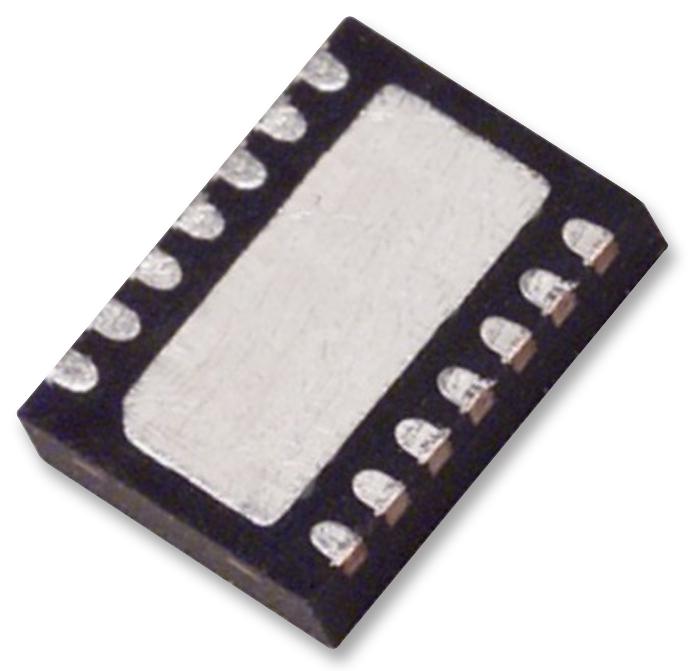

- Package: 14-pin TDFN, 3mm x 3mm
- Operation Temperature Range: -40°C to +85°C
- Internal Compensation: Yes
- Adjustable Current Limit: Yes
- True Shutdown: Yes, low shutdown current
- Power Dissipation: 1454mW at Ta = +70°C
- Peak Inductor Current: 3.5A
- Maximum Duty Cycle: 87%
Buy the Buy Maxim MAX8627ETD+T Low Voltage Boost Converter Part Number MAX8627ETDT Online
Purchase the MAX8627ETD+T boost converter online today and benefit from its high efficiency of up to 95%, low quiescent current of 20µA, and true shutdown feature. Compact and reliable, it is perfect for powering portable electronics, microprocessors, DSP cores, backup power, and consumer gadgets. With internal soft-start limiting inrush current to 500mA, adjustable current limit, and PWM operation at 1MHz, this device ensures low noise and ripple. Enhance your projects with this efficient and space-saving power solution, available for quick delivery.
Order your Maxim MAX8627ETD+T high-efficiency boost converter today and ensure reliable power for portable devices, microprocessors, or backup systems.
