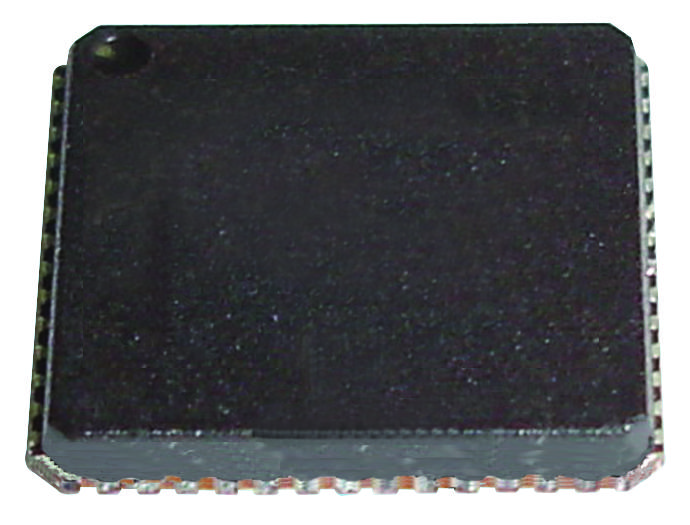

MAXIM INTEGRATED / ANALOG DEVICES MAX9708ETNTD High-Performance Audio Amplifier
The MAX9708ETN+TD from Maxim Integrated Products is a high-performance audio power amplifier delivering up to 2 x 21W stereo or 42W mono output with up to 87% efficiency. Designed in a compact 56-pin TQFN package, it features filterless Class D operation, differential inputs, click-and-pop suppression, and four gain options (22dB, 25dB, 29.5dB, 36dB). It supports supply voltages from 10V to 18V, operates efficiently with thermal protections, synchronization, and EMI reduction schemes, making it suitable for LCDs, plasma displays, and high-fidelity audio systems, with a broad temperature range of -40°C to 85°C.
MAXIM INTEGRATED / ANALOG DEVICES MAX9708ETNTD High-Performance Audio Amplifier Specifications:
- Output Power: 2 x 21W stereo, 42W mono at 8Ω (THD=10%)
- Efficiency: Up to 87%
- Supply Voltage: 10V to 18V
- Package: 56-pin TQFN (8mm x 8mm)
- Operating Temperature Range: -40°C to 85°C
- THD+N: 0.1%
- PSRR: 90dB at 1kHz
- CMRR: 70dB between 20Hz and 20kHz
- Gain Settings: 22dB, 25dB, 29.5dB, 36dB
- Synchronization: External clock 600kHz to 1.2MHz
- Features: Differential inputs, click/pop suppression, thermal and short circuit protection
- Shutdown and mute controls for power saving and audio muting
- Peak switch-on resistance: 0.3Ω
- Auxiliary thermal warning flag with programmable thresholds
- Low dropout supply operation, with robust overload protection
- Designed for multimedia displays, audio projects, and high-fidelity sound systems.
Buy the Buy Maxim Integrated MAX9708ETN+TD Part Number MAX9708ETN+TD Online
Explore the MAX9708ETN+TD online and elevate your audio system with this efficient, versatile Class D amplifier. Its differential inputs, multiple gain settings, and EMI-reducing spread-spectrum mode make it ideal for LCDs, plasma displays, and Hi-Fi solutions. Enjoy high output power up to 42W mono, with 87% efficiency, low THD+N, comprehensive protection, and synchronization capabilities. Purchasing online provides quick delivery, competitive prices, and supports seamless integration into your audio designs for professional or consumer applications.
Order your Maxim Integrated MAX9708ETN+TD today and enhance your high-fidelity audio projects with reliable, efficient power amplification.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX9708ETNTD?
You can click on the BUY or RFQ button to purchase MAX9708ETNTD from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX9708ETNTD?
You can download the MAX9708ETNTD datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX9708ETNTD?
MAXIM INTEGRATED / ANALOG DEVICES
