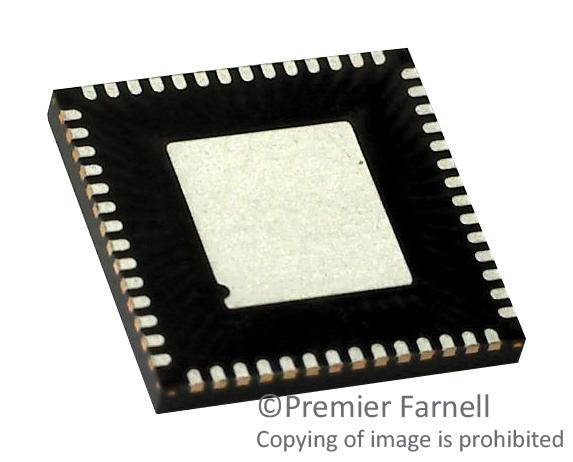

MAXIM INTEGRATED / ANALOG DEVICES MAX9709ETND Audio Power Amplifier
The MAX9709ETND is a highly efficient, filterless Class D audio amplifier capable of delivering 2 x 25W stereo power into an 8Ω load and 50W in mono mode. It features spread-spectrum modulation to reduce EMI, differential inputs for low noise, and seven gain settings for flexibility. The device operates over a wide voltage range of +10V to +22V, includes thermal and short-circuit protections, and is ideal for LCD TVs, high-fi audio, and automotive audio applications, ensuring high-performance and space-efficient installation.
MAXIM INTEGRATED / ANALOG DEVICES MAX9709ETND Audio Power Amplifier Specifications:
- Output Power: 2 x 25W (stereo), 50W (mono)
- Load Impedance: 8Ω (stereo), 4Ω (mono)
- Efficiency: Up to 87%
- Supply Voltage Range: +10V to +22V
- Protection: Short-circuit, thermal overload, thermal flag
- Modulation Modes: Fixed frequency, spread-spectrum
- Gain Settings: 22dB, 25dB, 29.5dB, 36dB
- Input Type: Differential, optional single-ended configuration
- Audio Frequency Range: 20Hz to 20kHz
- THD+N: 0.1% at rated power
- Package: 56-pin TQFN and 64-pin TQFP
- Operating Temperature: -40°C to +85°C
- PCB Space: Space-saving, minimal heatsink needed
- Application: LCD and PDP TVs, automotive, high-fidelity audio systems
Buy the MAXIM MAX9709ETND – Reliable Audio Power Amplifier for Industrial Applications
Experience high-quality sound with the MAXIM MAX9709ETND, a space-saving, filterless Class D audio amplifier providing up to 50W mono or 2 x 25W stereo output. Featuring spread-spectrum modulation to reduce EMI, differential inputs for low noise, and multiple gain settings, it ensures professional-grade audio performance. With robust protections including thermal and short-circuit safeguards, the MAX9709ETND is ideal for LCD TVs, PDP displays, automotive audio, and high-fidelity systems. Easy to install, with a wide voltage range, and operational from -40°C to +85°C, order online today for reliable, efficient audio amplification.
Get MAXIM MAX9709ETND today—built for precision and long-lasting durability in high-power audio solutions.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX9709ETND?
You can click on the BUY or RFQ button to purchase MAX9709ETND from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX9709ETND?
You can download the MAX9709ETND datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX9709ETND?
MAXIM INTEGRATED / ANALOG DEVICES
